FORZA350 2023 · E-9 STARTER MOTOR

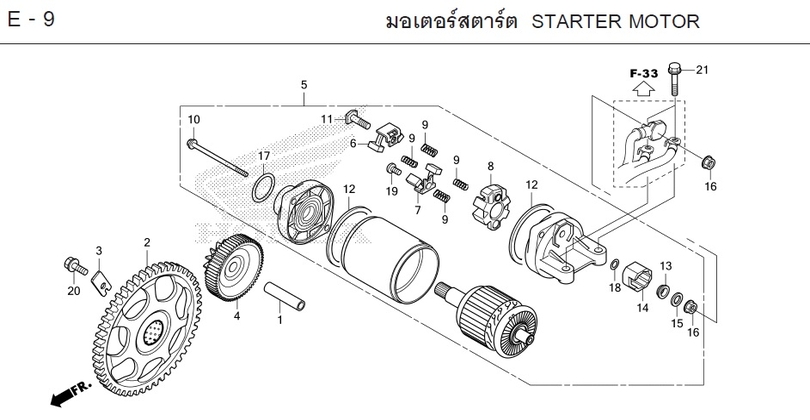

Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-9
- 1 PIN, 10x44 28102-ME9-000Qty per bike: 1
- 2 GEAR, STARTING CLUTCH DRIVE (49T) 28110-K1B-T00Qty per bike: 1
- 3 PLATE, STARTING CLUTCH DRIVE GEAR GUIDE 28115-KTW-900Qty per bike: 1
- 4 GEAR, STARTING CLUTCH REDUCTION 62T/12T 28131-K1B-T00Qty per bike: 1
- 5 STARTER MOTOR SET 31200-K1B-T01Qty per bike: 1
- 6 BRUSH SET A 31201-MEW-921Qty per bike: 1
- 7 BRUSH SET B 31202-MEW-921Qty per bike: 1
- 8 HOLDER, BRUSH 31203-MEW-921Qty per bike: 1
- 9 SPRING, BRUSH 31204-MEW-921Qty per bike: 4
- 10 BOLT 31205-HP5-601Qty per bike: 2
- 11 BOLT, TERMINAL MOUNTING 31206-MEW-921Qty per bike: 1
- 12 SEAL, RING 31207-HP5-601Qty per bike: 2
- 13 INSULATOR 31208-MEW-921Qty per bike: 1
- 14 LOCK, TERMINAL 31209-MEW-921Qty per bike: 1
- 15 WASHER 31210-MEW-921Qty per bike: 1
- 16 NUT, WASHER, 6 mm 90071-MB0-000Qty per bike: 2
- 17 O-RING, 24.4x3.1 91309-425-003Qty per bike: 1
- 18 O-RING, 4x2 91320-MB0-000Qty per bike: 1
- 19 SCREW, WASHER, 5x12 93892-05012-08Qty per bike: 1
- 20 BOLT, FLANGE, 6x14 95701-06014-00Qty per bike: 1
- 21 BOLT, FLANGE, 6x25 95801-06025-00Qty per bike: 2
