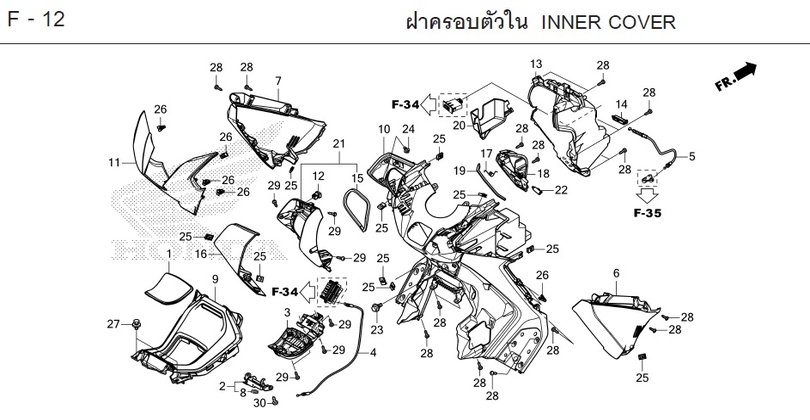

FORZA350 2023 · F-12 INNER COVER
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-12
- 1 LID, FUEL FILLER 64405-K0B-T00ZAQty per bike: 1
- 2 LOCK SET, FUEL FILLER LID 64440-K0B-T00Qty per bike: 1
- 3 LUG, FUEL FILLER LID 64450-K0B-T01Qty per bike: 1
- 4 CABLE, FUEL FILLER LID 64455-K0B-T01Qty per bike: 1
- 5 CABLE, LEFT STORAGE COMPARTMENT LID 64485-K0B-T01Qty per bike: 1
- 6 COVER, RIGHT FRONT INNER SIDE 64530-K1B-T20ZAQty per bike: 1
- 7 COVER, LEFT FRONT INNER SIDE 64540-K1B-T20ZAQty per bike: 1
- 8 SPRING, LOCK 77234-KRJ-900Qty per bike: 1
- 9 COVER, CENTER (ALL COLORS) 81121-K0B-T00ZAQty per bike: 1
- 10 COVER, INNER (ALL COLORS) 81130-K0B-T01ZAQty per bike: 1
- 11 COVER, STEERING NECK GUARD (#15-#20) 81135-K0B-T00ZJQty per bike: 1
- 12 PIN, LEFT BOX LID LOCK 81142-K01-901Qty per bike: 1
- 13 BOX, INNER 81150-K1B-T00Qty per bike: 1
- 14 LOCK, INNER BOX LID 81151-K0B-T00Qty per bike: 1
- 15 SEAL, INNER BOX LID 81154-K0B-T00Qty per bike: 1
- 16 COVER, INNER BOX (BLACK) 81155-K1B-T20ZEQty per bike: 1
- 16 COVER, INNER BOX (GRAY/BLACK) 81155-K1B-T20ZGQty per bike: 1
- 16 COVER, INNER BOX (BLUE/BLACK) 81155-K1B-T20ZJQty per bike: 1
- 17 SPRING, INNER BOX LID 81156-K0B-T00Qty per bike: 1
- 18 COVER, INNER BOX MOUNTING LUG 81157-K0B-T00Qty per bike: 1
- 19 SEAL, LUG COVER 81158-K0B-T00Qty per bike: 1
- 20 INNER SEPARATOR BOX 81159-K0B-T00Qty per bike: 1
- 21 INNER BOX LID SET (ALL COLORS) 81220-K0B-T00ZAQty per bike: 1
- 22 DAMPER, LEFT LID (REAR) 83534-K35-V01Qty per bike: 1
- 23 BOLT, FLANGE, 6 mm 90111-162-000Qty per bike: 1
- 24 CLIP, LOCK 90116-SP0-003Qty per bike: 2
- 25 NUT, SPRING, 4 mm 90302-KWW-A00Qty per bike: 10
- 26 CLIP, LOCK (PO) 90666-K59-A11Qty per bike: 8
- 27 BOLT, WASHER, 6x12 93404-06012-08Qty per bike: 2
- 28 SCREW, TAPPING, 4x16 93903-34420Qty per bike: 24
- 29 SCREW, TAPPING, 4x16 93903-34480Qty per bike: 10
- 30 SCREW, TAPPING, 5x16 93903-35320Qty per bike: 2
