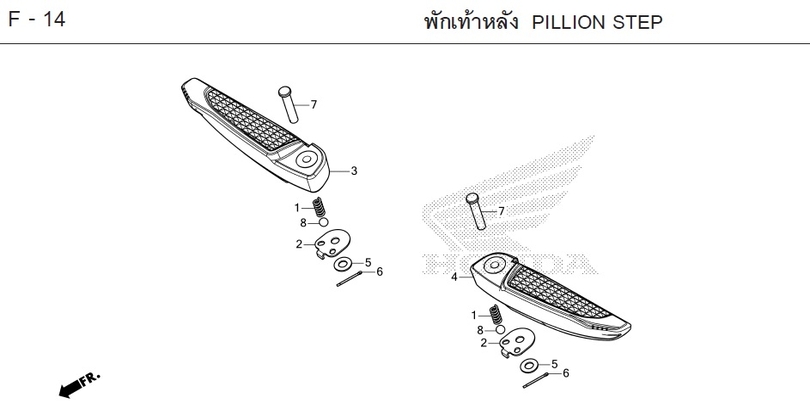

FORZA350 2023 · F-14 PILLION STEP
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-14
- 1 SPRING, KICK STARTER 28333-300-000Qty per bike: 2
- 2 PLATE, REAR STEP 50718-K40-F00Qty per bike: 2
- 3 STEP, RIGHT REAR 50720-K0B-T00Qty per bike: 1
- 4 STEP, LEFT REAR 50730-K0B-T00Qty per bike: 1
- 5 WASHER, 6 mm 94101-06000Qty per bike: 2
- 6 PIN, COTTER, 1.6x15 94201-16150Qty per bike: 2
- 7 PIN A, REAR STEP MOUNTING 95015-81000Qty per bike: 2
- 8 BALL, #8 (1/4) 96211-08000Qty per bike: 2
