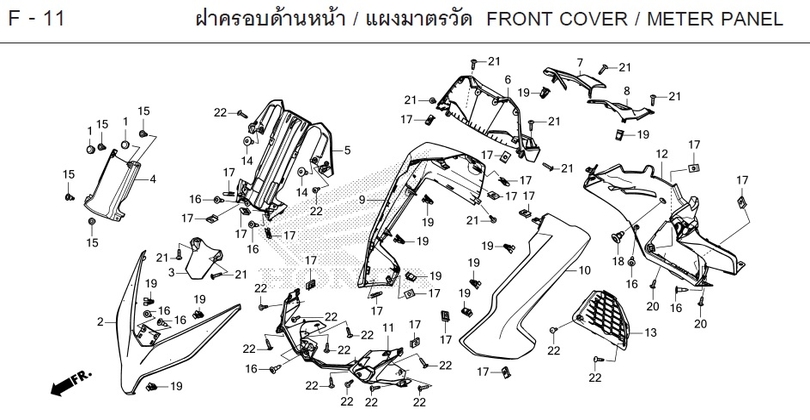

FORZA350 2023 · F-11 / FRONT COVER / METER PANEL
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-11
- 1 RUBBER 47117-K0B-T01Qty per bike: 2
- 2 COVER, FRONT DECORATIVE (BLACK) 64305-K1B-T20ZBQty per bike: 1
- 2 COVER, FRONT DECORATIVE 64305-K1B-T20ZDQty per bike: 1
- 3 CAP, CENTER FRONT DECORATIVE COVER 64306-K1B-T20ZBQty per bike: 1
- 4 CLOSING COVER, FRONT METER PANEL (ALL COLORS) 64335-K0B-T00ZAQty per bike: 1
- 5 PANEL, FRONT METER A (ALL COLORS) 64336-K1B-T20ZAQty per bike: 1
- 6 PANEL, REAR METER (ALL COLORS) 64337-K1B-T00ZAQty per bike: 1
- 7 COVER, RIGHT METER DECORATIVE (BLACK) 64345-K0B-T00ZKQty per bike: 1
- 7 COVER, RIGHT METER DECORATIVE 64345-K0B-T00ZLQty per bike: 1
- 8 COVER, LEFT METER DECORATIVE (BLACK) 64346-K0B-T00ZKQty per bike: 1
- 8 COVER, LEFT METER DECORATIVE 64346-K0B-T00ZLQty per bike: 1
- 9 COVER, RIGHT FRONT (WOL) (RED/BLACK) 64501-K1B-T20ZEQty per bike: 1
- 9 COVER, RIGHT FRONT (WOL) (BLACK) 64501-K1B-T20ZHQty per bike: 1
- 9 COVER, RIGHT FRONT (WOL) (GRAY/BLACK) 64501-K1B-T20ZKQty per bike: 1
- 9 COVER, RIGHT FRONT WOL (BLUE-BLACK) 64501-K1B-T20ZMQty per bike: 1
- 10 COVER, LEFT FRONT (WOL) (RED/BLACK) 64502-K1B-T20ZEQty per bike: 1
- 10 COVER, LEFT FRONT (WOL) (BLACK) 64502-K1B-T20ZHQty per bike: 1
- 10 COVER, LEFT FRONT (WOL) (GRAY/BLACK) 64502-K1B-T20ZKQty per bike: 1
- 10 COVER, LEFT FRONT WOL (BLUE-BLACK) 64502-K1B-T20ZMQty per bike: 1
- 11 COVER, FRONT CENTER (ALL COLORS) 64510-K1B-T20ZAQty per bike: 1
- 12 COVER, FRONT LOWER (ALL COLORS) 64520-K1B-T00ZAQty per bike: 1
- 13 PLATE, RADIATOR CLOSING 64521-K1B-T00Qty per bike: 1
- 14 SCREW, 6x14 90106-MM4-000Qty per bike: 2
- 15 RIVET, 6 mm 90116-K0A-E11Qty per bike: 4
- 16 CLIP, LOCK 90116-SP0-003Qty per bike: 8
- 17 NUT, SPRING, 4 mm 90302-KWW-A00Qty per bike: 17
- 18 CLIP, LOCK 90601-PV3-003Qty per bike: 1
- 19 CLIP, LOCK (PO) 90666-K59-A11Qty per bike: 11
- 20 SCREW, TAPPING, 4x12 93903-24380Qty per bike: 2
- 21 SCREW, TAPPING, 4x16 93903-34420Qty per bike: 9
- 22 SCREW, TAPPING, 4x16 93903-34480Qty per bike: 14
