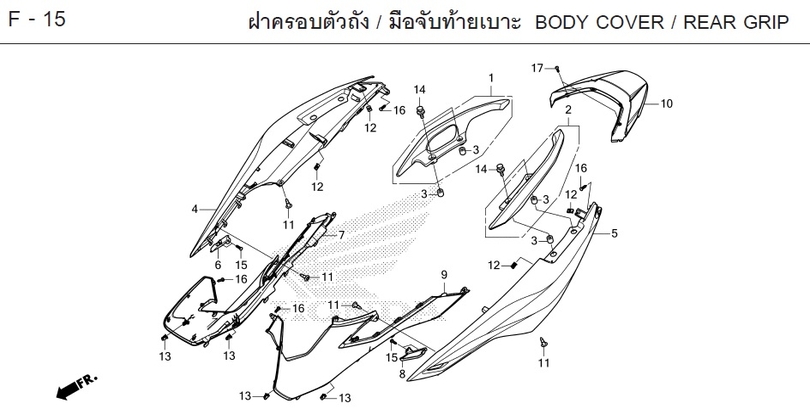

FORZA350 2023 · F-15 / BODY COVER / REAR GRIP
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-15
- 1 GRAB HANDLE, RIGHT REAR #15 #20 (ALL COLORS) 77330-K1B-T00ZGQty per bike: 1
- 2 GRAB HANDLE, LEFT REAR #15 #20 (ALL COLORS) 77340-K1B-T00ZGQty per bike: 1
- 3 COLLAR, REAR GRAB HANDLE B 81203-KGF-900Qty per bike: 4
- 4 COVER SET, RIGHT BODY SIDE (WL) 83200-K1B-T20ZCQty per bike: 1
- 4 COVER SET, RIGHT BODY SIDE (WL) 83200-K1B-T20ZDQty per bike: 1
- 4 COVER SET, RIGHT BODY SIDE (WL) 83200-K1B-T20ZEQty per bike: 1
- 4 COVER SET, RIGHT BODY SIDE (WL) 83200-K1B-T20ZFQty per bike: 1
- 4 COVER SET, RIGHT BODY SIDE WL (WL) (BLACK) 83200-K1B-T20ZGQty per bike: 1
- 4 COVER SET, RIGHT BODY SIDE WL (WL) (BLACK) 83200-K1B-T30ZFQty per bike: 1
- 5 COVER SET, LEFT BODY SIDE (WL) 83300-K1B-T20ZCQty per bike: 1
- 5 COVER SET, LEFT BODY SIDE (WL) 83300-K1B-T20ZDQty per bike: 1
- 5 COVER SET, LEFT BODY SIDE (WL) 83300-K1B-T20ZEQty per bike: 1
- 5 COVER SET, LEFT BODY SIDE (WL) 83300-K1B-T20ZFQty per bike: 1
- 5 COVER SET, LEFT BODY SIDE WL (WL) (BLACK) 83300-K1B-T20ZGQty per bike: 1
- 5 COVER, LEFT BODY WITH STICKER 83300-K1B-T30ZFQty per bike: 1
- 6 COVER, RIGHT INNER 83501-K1B-T00Qty per bike: 1
- 7 COVER, RIGHT FRONT BODY SIDE 83520-K0B-T00ZEQty per bike: 1
- 7 COVER, RIGHT FRONT BODY SIDE 83520-K0B-T00ZPQty per bike: 1
- 8 COVER, LEFT INNER 83601-K1B-T00Qty per bike: 1
- 9 COVER, LEFT FRONT BODY SIDE 83620-K0B-T00ZEQty per bike: 1
- 9 COVER, LEFT FRONT BODY SIDE 83620-K0B-T00ZPQty per bike: 1
- 10 COVER, UPPER CENTER REAR #15 #20 (ALL COLORS) 83701-K0B-T00ZMQty per bike: 1
- 11 CLIP, LOCK 90116-SP0-003Qty per bike: 4
- 12 NUT, SPRING, 4 mm 90302-KWW-A00Qty per bike: 4
- 13 CLIP, LOCK (PO) 90666-K59-A11Qty per bike: 4
- 14 BOLT, WASHER, 8x25 93406-08025-07Qty per bike: 4
- 15 SCREW, TAPPING, 4x12 93903-34320Qty per bike: 4
- 16 SCREW, TAPPING, 4x16 93903-34420Qty per bike: 4
- 17 SCREW, TAPPING, 4x16 93903-34480Qty per bike: 2
