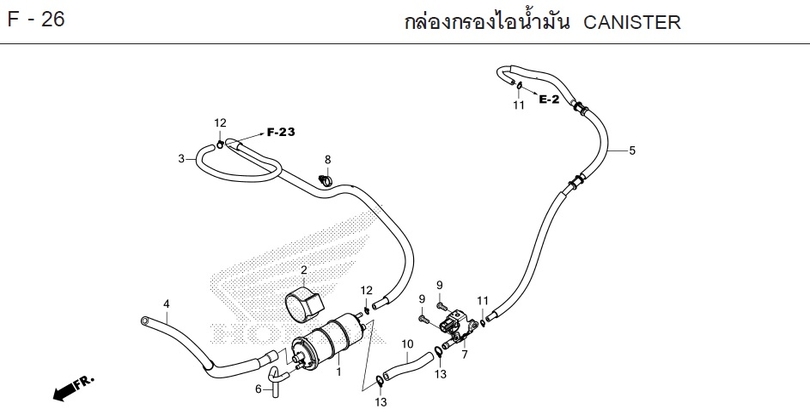

FORZA350 2023 · F-26 CANISTER
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-26
- 1 BOX, BREATHER 17310-K0B-T01Qty per bike: 1
- 2 BOOT, BREATHER BOX 17311-GFM-K00Qty per bike: 1
- 3 TUBE, FUEL TANK BREATHER 17412-K1B-T20Qty per bike: 1
- 4 TUBE, AIR 17413-K0B-T00Qty per bike: 1
- 5 TUBE, BREATHER 17414-K1B-T20Qty per bike: 1
- 6 TUBE, DRAIN 17417-K0B-T00Qty per bike: 1
- 7 SOLENOID VALVE, OIL VAPOR FLOW CONTROL 36162-KPN-A71Qty per bike: 1
- 8 CLIP, WIRE 90659-734-K51Qty per bike: 1
- 9 SCREW, 5x12 93500-05012-0HQty per bike: 2
- 10 HOSE, FUEL, 7.3x85 95001-75085-40Qty per bike: 1
- 11 CLIP, TUBE (B7) 95002-02070Qty per bike: 2
- 12 CLIP, TUBE (B8) 95002-02080Qty per bike: 2
- 13 CLIP, TUBE (B12) 95002-02120Qty per bike: 2
This catalogue is shared by: FORZA350 2023. Quoted prices include purchasing service and shipping to Vietnam. Final price is confirmed by the shop when the deposit is received and may change with the exchange rate.
