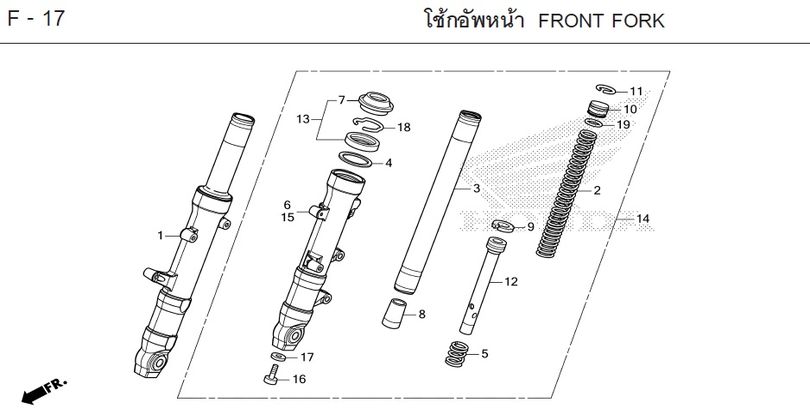

FORZA350 2025 · F-17 FRONT FORK
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-17
- 1 FRONT SHOCK ABSORBER SET, RIGHT 51400-K1B-T21Qty per bike: 1
- 2 SPRING, FRONT FORK 51401-K1B-T21Qty per bike: 2
- 3 SHAFT, FRONT FORK 51410-K0R-V01Qty per bike: 2
- 4 WASHER, SEAL 51412-GC4-731Qty per bike: 2
- 5 SPRING, FORK PISTON 51412-KFG-003Qty per bike: 2
- 6 TUBE, RIGHT FRONT FORK 51420-K1B-T01Qty per bike: 1
- 7 SEAL, DUST 51425-KL8-901Qty per bike: 2
- 8 BUSH, OIL PROOF 51432-K0R-V01Qty per bike: 2
- 9 RING, FORK PISTON 51437-KFG-003Qty per bike: 2
- 10 SEAT, FRONT FORK CAP SPRING 51454-K0R-V01Qty per bike: 2
- 11 WASHER, LOCK, 29.8x1.2 51456-KFG-003Qty per bike: 2
- 12 PISTON, FORK 51470-K1B-T21Qty per bike: 2
- 13 SEAL SET, FRONT FORK TUBE 51490-KL8-900Qty per bike: 2
- 14 FRONT SHOCK ABSORBER SET, LEFT 51500-K1B-T21Qty per bike: 1
- 15 TUBE, LEFT FRONT FORK 51520-K1B-T01Qty per bike: 1
- 16 BOLT, 8x27 (SHOWA) 90116-383-721Qty per bike: 2
- 17 WASHER, SPECIAL, 8 mm (SHOWA) 90544-283-000Qty per bike: 2
- 18 RING, OIL SEAL STOPPER 90601-369-000Qty per bike: 2
- 19 O-RING, 21.7x3.5 91356-K0R-V01Qty per bike: 2
