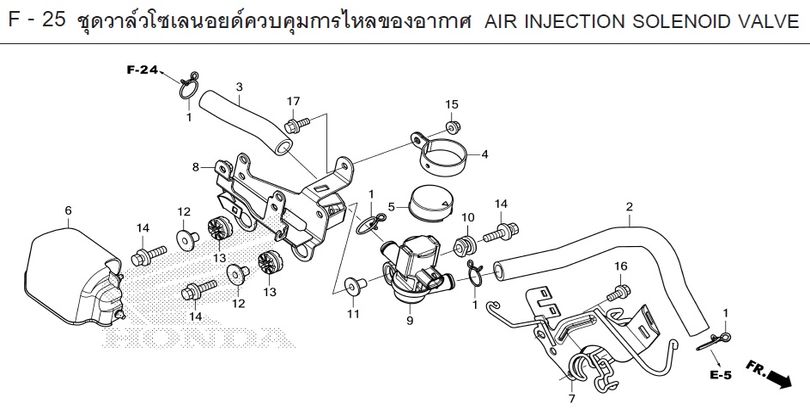

FORZA350 2025 · F-25 AIR INJECTION SOLENOID VALVE
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-25
- 1 CLIP, TUBE 17724-102-700Qty per bike: 4
- 2 TUBE, BREATHER A 18651-K1B-T20Qty per bike: 1
- 3 TUBE, BREATHER B 18652-K1B-T00Qty per bike: 1
- 4 BAND, AIR FLOW CONTROL VALVE 19342-K04-930Qty per bike: 1
- 5 CAP, AIR FLOW CONTROL VALVE 19343-KTW-900Qty per bike: 1
- 6 COVER, IGNITION COIL 30520-K0B-T00Qty per bike: 1
- 7 STAY, BREATHER TUBE 32115-K1B-T00Qty per bike: 1
- 8 STAY, IGNITION COIL 32116-K1B-T20Qty per bike: 1
- 9 SOLENOID VALVE SET, AIR FLOW CONTROL 36450-KTW-901Qty per bike: 1
- 10 RUBBER 43516-MR5-000Qty per bike: 1
- 11 COLLAR, 6.3x13 50324-425-010Qty per bike: 1
- 12 COLLAR (BLACK) (FOR REAR) 61104-428-730Qty per bike: 2
- 13 RUBBER C 84703-K04-930Qty per bike: 2
- 14 BOLT, WASHER, 6x25 93404-06025-07Qty per bike: 3
- 15 NUT, FLANGE, 6 mm 94050-06000Qty per bike: 1
- 16 BOLT, FLANGE, 6x14 95701-06014-00Qty per bike: 2
- 17 BOLT, FLANGE, 6x14 95801-06014-08Qty per bike: 1
