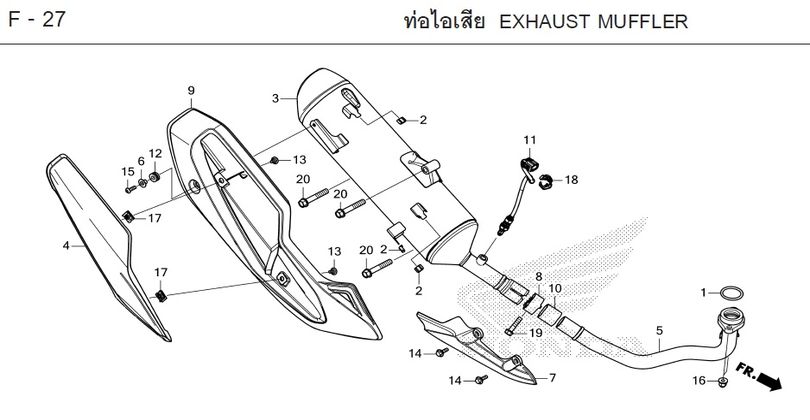

FORZA350 2025 · F-27 EXHAUST MUFFLER
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-27
- 1 GASKET, EXHAUST PIPE 18291-MN4-920Qty per bike: 1
- 2 RUBBER, MUFFLER HEAT GUARD 18293-MCA-A20Qty per bike: 3
- 3 MUFFLER 18300-K1B-T20Qty per bike: 1
- 3 MUFFLER 18300-K1B-T60Qty per bike: 1
- 4 GUARD, MUFFLER HEAT B 18319-K1B-T20Qty per bike: 1
- 5 EXHAUST PIPE 18320-K1B-T00Qty per bike: 1
- 6 COLLAR, EXHAUST PIPE END CAP 18353-K04-930Qty per bike: 1
- 7 GUARD, EXHAUST PIPE NECK HEAT 18360-K0B-T00Qty per bike: 1
- 9 GUARD, MUFFLER HEAT A 18380-K1B-T00Qty per bike: 1
- 10 GASKET, MUFFLER 18391-MN1-670Qty per bike: 1
- 11 SENSOR SET, OXYGEN 36531-K2L-T01Qty per bike: 1
- 12 RUBBER 80107-GE0-710Qty per bike: 1
- 13 SCREW, SPECIAL, 5 mm 90104-K04-930Qty per bike: 2
- 14 BOLT, SPECIAL, M6 90107-K1B-T60Qty per bike: 2
- 14 BOLT, SPECIAL, M6 90107-KTW-900Qty per bike: 2
- 15 BOLT, SPECIAL, 6x18 90132-MFJ-D00Qty per bike: 1
- 16 NUT, HEX CAP, 8 mm 90304-KPH-700Qty per bike: 2
- 17 NUT, CLIP, 5 mm 90677-KAN-T00Qty per bike: 2
- 18 CLAMP, WIRE 90690-MEF-800Qty per bike: 1
- 19 BOLT, FLANGE, 8x35 95701-08035-02Qty per bike: 1
- 20 BOLT, FLANGE, 10x60 90108-K1B-T60Qty per bike: 3
- 20 BOLT, FLANGE, 10x60 95701-10060-07Qty per bike: 3
This catalogue is shared by: FORZA350 2025. Quoted prices include purchasing service and shipping to Vietnam. Final price is confirmed by the shop when the deposit is received and may change with the exchange rate.
