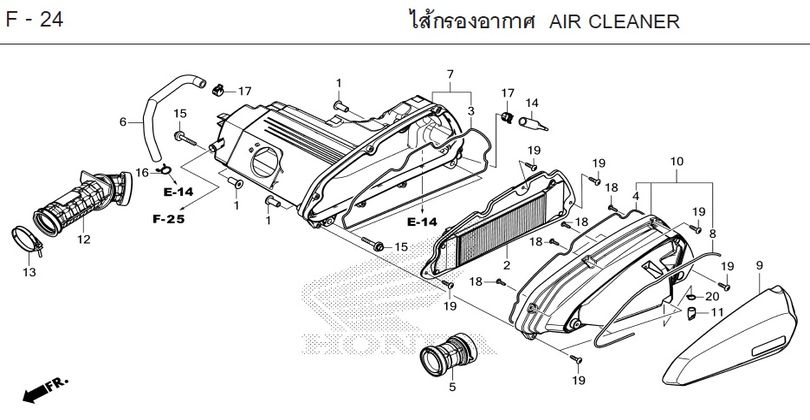

FORZA350 2025 · F-24 AIR CLEANER
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-24
- 1 COLLAR, AIR CLEANER CASE 17208-GFM-970Qty per bike: 3
- 2 ELEMENT, AIR CLEANER 17210-K1B-U10Qty per bike: 1
- 3 SEAL, AIR CLEANER CASE 17213-K1B-T00Qty per bike: 1
- 4 SEAL, AIR CLEANER ELEMENT COVER 17214-K1B-T00Qty per bike: 1
- 5 DUCT, AIR 17215-K1B-T00Qty per bike: 1
- 6 TUBE, BREATHER 17218-K1B-T00Qty per bike: 1
- 7 AIR CLEANER CASE SET 17225-K1B-T00Qty per bike: 1
- 8 SEAL, AIR TRAP COVER 17233-K1B-T00Qty per bike: 1
- 9 COVER, AIR TRAP 17234-K2L-T00Qty per bike: 1
- 10 AIR CLEANER CASE COVER SET 17235-K1B-T00Qty per bike: 1
- 11 PLUG, AIR VENT HOLE 17236-KVB-900Qty per bike: 1
- 12 NECK, AIR TUBE 17253-K1B-T00Qty per bike: 1
- 13 BAND, AIR TUBE (54) 17256-K1B-T00Qty per bike: 1
- 13 BAND, AIR TUBE (54) 17256-K1B-T60Qty per bike: 1
- 14 TUBE, DRAIN 17261-K2L-D00Qty per bike: 1
- 15 BOLT, WASHER, 6x40 90141-K1B-T00Qty per bike: 3
- 16 BAND, HOSE B, 14.5 mm 90661-GHB-630Qty per bike: 1
- 17 BAND, HOSE 90682-SA0-671Qty per bike: 2
- 17 BAND, HOSE (D14.5) 91406-MS8-000Qty per bike: 2
- 18 SCREW, TAPPING, 4x16 93903-24420Qty per bike: 5
- 18 SCREW, TAPPING, 4x16 93903-24480Qty per bike: 5
- 19 SCREW, TAPPING, 5x20 93903-25480Qty per bike: 10
- 20 CLIP, TUBE (C12) 95002-80000Qty per bike: 1
