REBEL 300 2020 · E-14 CRANKSHAFT/PISTON

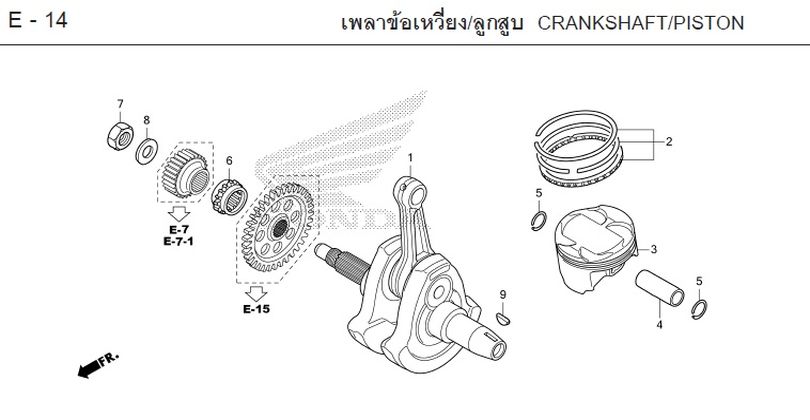

Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-14
- 1 CRANKSHAFT COMP 13000-K33-D04Qty per bike: 1
- 2 PISTON RING SET (STD) 13010-KYJ-305Qty per bike: 1
- 3 PISTON 13101-K33-D00Qty per bike: 1
- 4 PIN, PISTON 13111-MEL-000Qty per bike: 1
- 5 CLIP, PISTON PIN, 17 mm 13112-K33-D00Qty per bike: 2
- 6 GEAR, TIMING (17T) 14311-KYJ-900Qty per bike: 1
- 7 NUT, LOCK, 16 mm 90235-KYJ-900Qty per bike: 1
- 8 WASHER, 16 mm 90434-KPS-900Qty per bike: 1
- 9 KEY, 25x18 90742-KYJ-900Qty per bike: 1
