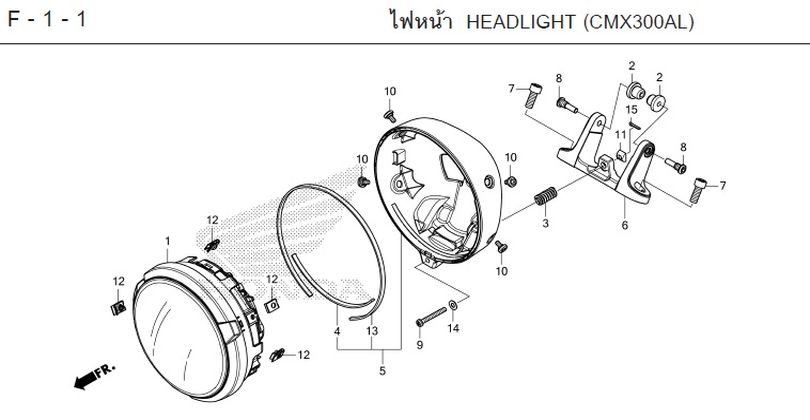

REBEL 300 2020 · F-1-1 1-1 HEADLIGHT (CMX300AL)
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-1-1
- 1 HEADLIGHT UNIT (WOL) 33100-K87-A31Qty per bike: 1
- 2 RUBBER, HEADLIGHT MOUNTING 61304-K87-A30Qty per bike: 1
- 3 SPRING, HEADLIGHT ADJUSTING 61305-K87-C80Qty per bike: 1
- 4 RUBBER, EXHAUST PIPE 61306-K87-A30Qty per bike: 1
- 5 HEADLIGHT HOUSING SET 61310-K87-A30Qty per bike: 1
- 6 HOLDER, HEADLIGHT 64221-K87-A30Qty per bike: 1
- 7 BOLT, 8x20 90113-GHB-650Qty per bike: 1
- 8 BOLT, HEADLIGHT UNIT MOUNTING 90136-K87-A30Qty per bike: 1
- 9 BOLT, HEADLIGHT LEVEL ADJUSTING 90137-K87-A30Qty per bike: 1
- 10 BOLT, SPECIAL, 5x10 90138-K87-A30Qty per bike: 1
- 11 NUT, HEADLIGHT LEVEL ADJUSTING SET MOUNTING 90310-K87-A30Qty per bike: 1
- 12 NUT, CLIP, 5 mm 90677-KAN-961Qty per bike: 1
- 13 RUBBER, HEADLIGHT HOUSING RIM 91351-K87-A30Qty per bike: 1
- 14 WASHER, 5 mm 94101-05700Qty per bike: 1
- 15 PIN, COTTER, 1.0 94201-10100Qty per bike: 1
