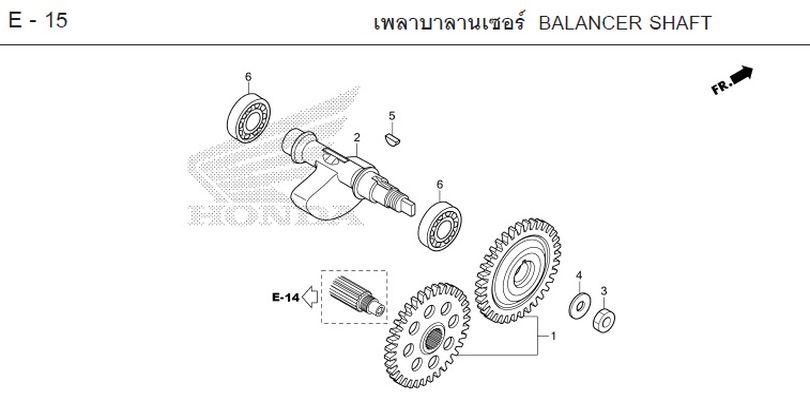

REBEL 300 2020 · E-15 BALANCER SHAFT
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-15
- 1 GEAR SET, BALANCER 13410-K87-A00Qty per bike: 1
- 2 SHAFT, BALANCER 13421-K33-D01Qty per bike: 1
- 3 NUT, HEX, 14 mm 90204-KYJ-900Qty per bike: 1
- 4 WASHER, 14.2x24 90433-MEY-670Qty per bike: 1
- 5 KEY, 4 mm 90741-KFB-000Qty per bike: 1
- 6 BEARING, RADIAL BALL, 6304 91008-K33-D02Qty per bike: 2
