REBEL 300 2020 · F-33-1 IGNITION COIL (CMX300AL)

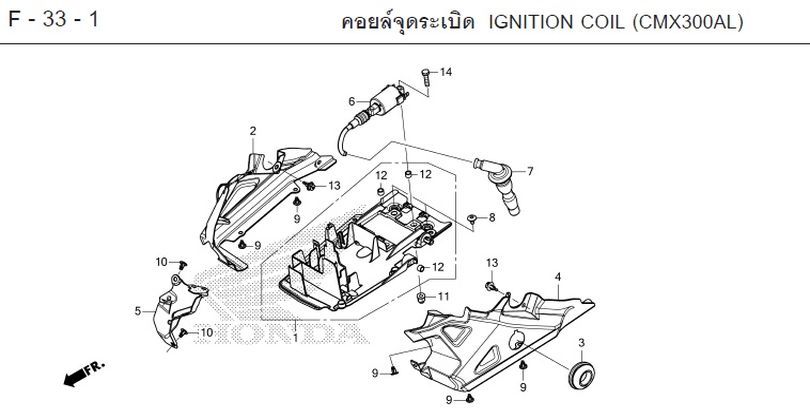

Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-33-1
- 1 PANEL, IGNITION COIL MOUNTING 19125-K87-A30Qty per bike: 1
- 2 CAP, RIGHT IGNITION COIL PANEL 19130-K87-A30Qty per bike: 1
- 3 CAP, KEY HOLE 19131-K87-A00Qty per bike: 1
- 4 CAP, LEFT IGNITION COIL PANEL 19135-K87-A30Qty per bike: 1
- 5 CAP, CENTER IGNITION COIL PANEL 19140-K87-A30Qty per bike: 1
- 6 IGNITION COIL SET 30510-MGZ-J01Qty per bike: 1
- 7 CAP, SPARK PLUG 30700-K87-A01Qty per bike: 1
- 8 SCREW, SPECIAL, 5x11 90114-KPH-700Qty per bike: 2
- 9 RIVET, 6 mm 90116-K0A-E11Qty per bike: 5
- 10 CLIP, LOCK 90116-SP0-003Qty per bike: 2
- 11 NUT, HEX CAP, 6 mm 90306-MKN-D50Qty per bike: 2
- 12 COLLAR 90504-K87-A30Qty per bike: 3
- 13 CLIP, LOCK 90683-MBW-003Qty per bike: 2
- 14 BOLT, HEX, 6x25 92101-06025-0AQty per bike: 2
