REBEL 300 2020 · F-29-1 29-1 WINKER (CMX300AL)

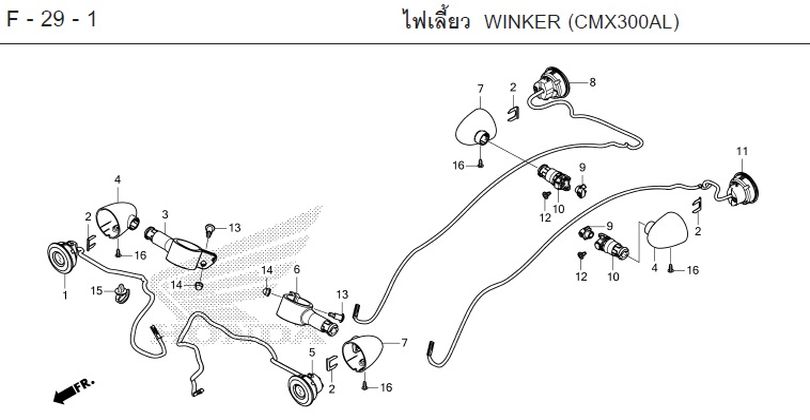

Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-29-1
- 1 FRONT TURN SIGNAL SET, RIGHT 33400-K87-A31Qty per bike: 1
- 2 PLATE, TURN SIGNAL BASE MOUNTING 33411-K87-A30Qty per bike: 4
- 3 BASE, RIGHT FRONT TURN SIGNAL HOLDER 33412-K87-A30Qty per bike: 1
- 4 COVER, TURN SIGNAL A FRONT RIGHT/REAR LEFT 33413-K87-A30Qty per bike: 2
- 5 FRONT TURN SIGNAL SET, LEFT 33450-K87-A31Qty per bike: 1
- 6 BASE, LEFT FRONT TURN SIGNAL HOLDER 33452-K87-A30Qty per bike: 1
- 7 COVER, TURN SIGNAL B FRONT LEFT/REAR RIGHT 33453-K87-A30Qty per bike: 2
- 8 REAR TURN SIGNAL SET, RIGHT 33600-K87-A31Qty per bike: 1
- 9 HOLDER, REAR TURN SIGNAL STAY 33609-K87-A30Qty per bike: 2
- 10 STAY, REAR TURN SIGNAL 33612-K87-A30Qty per bike: 2
- 11 REAR TURN SIGNAL SET, LEFT 33650-K87-A31Qty per bike: 1
- 12 RIVET, 6 mm 90116-K0A-E11Qty per bike: 2
- 13 BOLT, 6x22 90119-K87-A00Qty per bike: 2
- 14 NUT, CAP, 6 mm 90201-428-900Qty per bike: 2
- 15 CLIP, WIRE (BLACK) (145 mm) 91541-S0A-003Qty per bike: 1
- 16 SCREW, TAPPING, 4x12 93903-24380Qty per bike: 4
