REBEL 300 2020 · F-32-1 WIRE HARNESS (CMX300AL)

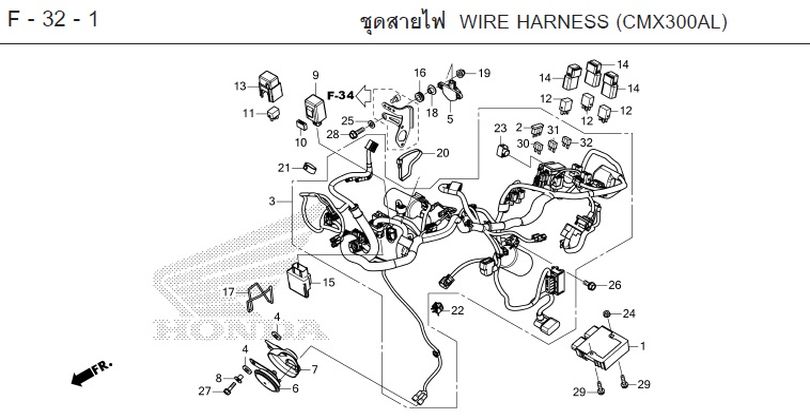

Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.

All parts on page F-32-1

1 REGULATOR/RECTIFIER SET 31600-MKJ-D01Qty per bike: 1
2 DIODE, 3-WAY 31730-MAS-601Qty per bike: 1
3 WIRE HARNESS 32100-K87-T80Qty per bike: 1
4 RUBBER, HORN STAY 33714-KL3-620Qty per bike: 2
5 SENSOR SET, BANK ANGLE (M6) 35160-KVS-751Qty per bike: 1
6 HORN (HIGH) 38110-MGZ-J01Qty per bike: 1
7 GUARD, HORN HEAT 38111-MGZ-J00Qty per bike: 1
8 COLLAR, HORN STAY 38117-MGZ-J00Qty per bike: 1
9 RELAY, TURN SIGNAL (LED) 38301-MKJ-D01Qty per bike: 1
10 RUBBER, TURN SIGNAL RELAY DAMPER (MITSUBA) 38306-KK4-000Qty per bike: 1
11 RELAY, MAIN (MICRO ISO 4P) 38501-KVZ-631Qty per bike: 1
12 RELAY, MAIN (MICRO ISO 4P) 38501-MCS-G01Qty per bike: 3
13 COVER, MAIN RELAY (2P) 38506-KZZ-900Qty per bike: 1
14 RUBBER, MAIN RELAY DAMPER 38506-MCS-G00Qty per bike: 3
15 ECM 38770-K87-T81Qty per bike: 1
16 RUBBER 64535-MFJ-D00Qty per bike: 2
17 STRAP, TOOL 83606-KWS-901Qty per bike: 1
18 COLLAR, BANK ANGLE SENSOR 90129-MGZ-J00Qty per bike: 2
19 NUT, CAP, 6 mm 90202-KCW-870Qty per bike: 2
20 BAND, WIRE HARNESS 90620-SB2-003Qty per bike: 1
21 STRAP (50) 90652-MKH-D20Qty per bike: 1
22 CLIP, WIRE LOCK, 8 mm 90690-GHB-631Qty per bike: 1
23 CAP, CHECK TERMINAL (6P 025M) 91771-MKG-D81Qty per bike: 1
24 NUT, FLANGE, 6 mm 94050-06070Qty per bike: 1
25 WASHER, 6 mm 94101-06800Qty per bike: 2
26 BOLT, FLANGE, 6x14 95701-06014-08Qty per bike: 1
27 BOLT, FLANGE, 6x20 95701-06020-07Qty per bike: 1
28 BOLT, FLANGE, 6x20 95701-06020-08Qty per bike: 2
29 BOLT, FLANGE, 6x22 95701-06022-07Qty per bike: 2
30 FUSE, MINI (7.5A) 98200-40750Qty per bike: 7
31 FUSE (15A) 98200-41500Qty per bike: 3
32 FUSE, MINI (30A) 98200-43000Qty per bike: 2
