WAVE 110i 2018 · E-10 LEFT CRANKCASE COVER

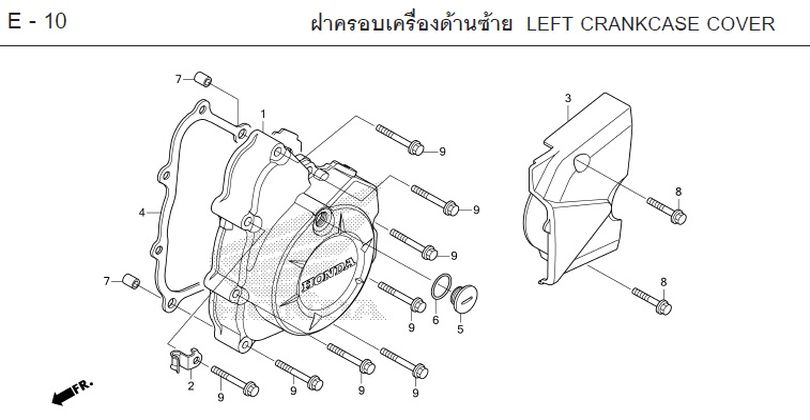

Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-10
- 1 COVER, LEFT CRANKCASE 11341-K03-H10Qty per bike: 1
- 2 HOLDER, OIL TEMPERATURE SENSOR WIRE 11346-KTR-940Qty per bike: 1
- 3 COVER, LEFT CRANKCASE REAR 11360-KWW-640Qty per bike: 1
- 4 GASKET, LEFT CRANKCASE COVER 11395-KWB-920Qty per bike: 1
- 5 CAP, TIMING HOLE 90084-428-000Qty per bike: 1
- 6 O-RING, 13.8x2.5 91308-KVR-C00Qty per bike: 1
- 7 PIN, DOWEL, 8x14 94301-08140Qty per bike: 2
- 8 BOLT, FLANGE, 6x25 96001-06025-00Qty per bike: 2
- 9 BOLT, FLANGE, 6x35 96001-06035-00Qty per bike: 8
