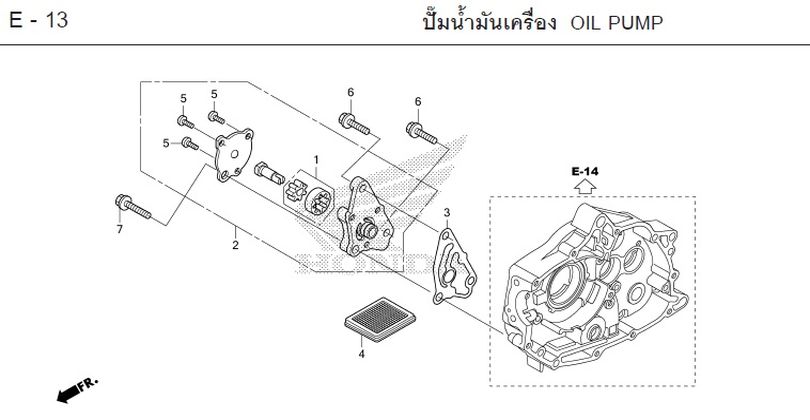

WAVE 110i 2018 · E-13 OIL PUMP
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-13
- 1 OIL PUMP ROTOR ASSY 15021-GF6-000Qty per bike: 1
- 2 OIL PUMP ASSY 15100-KWB-600Qty per bike: 1
- 3 GASKET, OIL PUMP 15119-KWB-600Qty per bike: 1
- 4 STRAINER, OIL FILTER 15421-KSP-910Qty per bike: 1
- 5 SCREW, 5x10 93500-05010-0AQty per bike: 3
- 6 BOLT, FLANGE, 6x16 96001-06016-00Qty per bike: 2
- 7 BOLT, FLANGE, 6x22 96001-06022-00Qty per bike: 1
