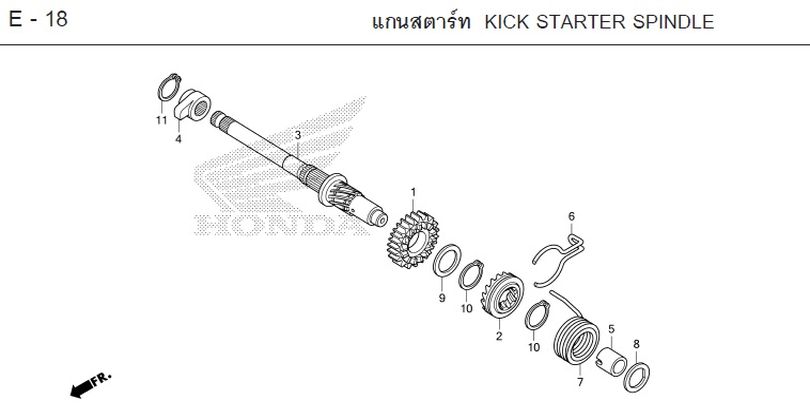

WAVE 110i 2018 · E-18 KICK STARTER SPINDLE
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-18
- 1 GEAR, STARTER (23T) 28211-KWB-600Qty per bike: 1
- 1 GEAR, STARTER 23T 28211-KWW-B10Qty per bike: 1
- 2 GEAR, ONE-WAY STARTING 28221-KWB-600Qty per bike: 1
- 2 GEAR, ONE-WAY STARTING 28221-KWW-B10Qty per bike: 1
- 3 SPINDLE, KICK STARTER 28251-KWB-600Qty per bike: 1
- 3 SPINDLE, KICK STARTER 28251-KWW-B10Qty per bike: 1
- 4 HOLDER, KICK STARTER SPRING 28262-KWB-600Qty per bike: 1
- 5 COLLAR, KICK STARTER SPINDLE SPRING 28265-KWB-600Qty per bike: 1
- 5 COLLAR, KICK STARTER SPINDLE SPRING 28265-KWW-B10Qty per bike: 1
- 6 SPRING, ONE-WAY STARTING GEAR 28271-KWB-600Qty per bike: 1
- 6 SPRING, ONE-WAY STARTING GEAR 28271-KWW-B10Qty per bike: 1
- 6 SPRING, ONE-WAY STARTING GEAR 28271-KYY-900Qty per bike: 1
- 7 SPRING, RETURN 28281-KWB-600Qty per bike: 1
- 7 SPRING, RETURN 28281-KWW-B10Qty per bike: 1
- 8 WASHER, SPECIAL, 14 mm 90451-KGH-900Qty per bike: 1
- 8 WASHER, SPECIAL, 14 mm 90451-KWW-B10Qty per bike: 1
- 9 WASHER, THRUST, 20 mm 90454-107-000Qty per bike: 1
- 9 แหวนกันรุน B, 20 มม 90454-KWW-B10Qty per bike: 1
- 10 WASHER, LOCK, 20 mm 90605-200-000Qty per bike: 2
- 10 WASHER, LOCK, 20 mm 90605-GFP-900Qty per bike: 2
- 10 WASHER, LOCK, 20 mm 90605-KWW-B10Qty per bike: 2
- 10 WASHER, LOCK, 20 mm 90605-KYY-900Qty per bike: 2
- 11 CLIP, OUTER LOCK, 16 mm 94510-16000Qty per bike: 1
