WAVE 110i 2018 · E-19 THROTTLE BODY

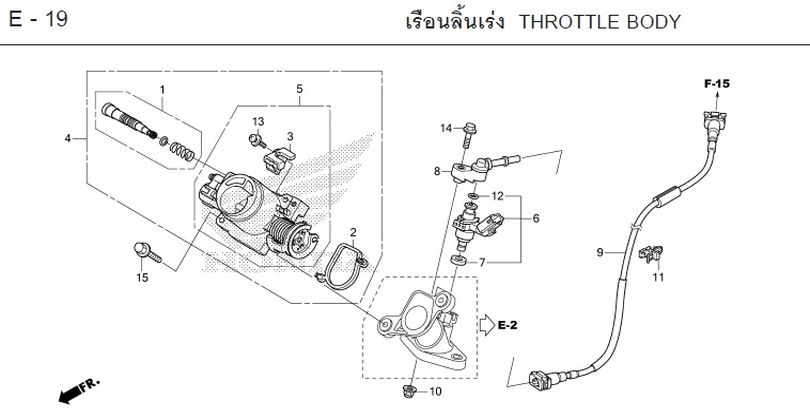

Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-19
- 1 SCREW SET, IDLE AIR ADJUSTING 16016-K03-H11Qty per bike: 1
- 2 O-RING 16075-KWW-641Qty per bike: 1
- 3 STAY, THROTTLE CABLE 16169-KWW-641Qty per bike: 1
- 4 SENSOR SET, SIGNAL/THROTTLE BODY (RQB A) 16400-K07-MA1Qty per bike: 1
- 5 THROTTLE BODY ASSY 16410-K07-MA1Qty per bike: 1
- 6 INJECTOR SET, FUEL 16450-K03-H11Qty per bike: 1
- 7 SEAL, INJECTOR 16472-KPC-D50Qty per bike: 1
- 8 COVER, INJECTOR 17560-KWW-640Qty per bike: 1
- 9 PIPE SET, FUEL FEED 17570-K58-T81Qty per bike: 1
- 10 NUT, U, 6 mm 90301-473-003Qty per bike: 1
- 11 CLIP, TUBE 90661-KPH-701Qty per bike: 1
- 12 O-RING, 6.3x2.2 91301-GGL-J01Qty per bike: 1
- 13 SCREW, WASHER, 5x12 93892-05012-18Qty per bike: 1
- 14 BOLT, FLANGE, 6x28 95701-06028-00Qty per bike: 1
- 15 BOLT, FLANGE, 6x18 96001-06018-00Qty per bike: 2
