WAVE 110i 2018 · E-16 TRANSMISSION

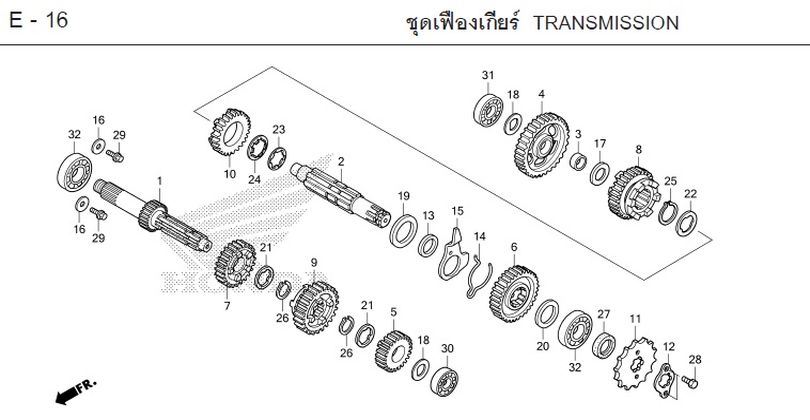

Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.

All parts on page E-16

1 SHAFT, DRIVE (13T) 23211-KWW-740Qty per bike: 1
2 SHAFT, DRIVEN 23221-KWW-740Qty per bike: 1
3 BUSH, 15 mm 23415-KPH-900Qty per bike: 1
4 GEAR, DRIVEN 1 (34T) 23421-K03-H10Qty per bike: 1
5 GEAR, DRIVE 2 (18T) 23431-K03-H10Qty per bike: 1
6 GEAR, DRIVEN 2 (28T) 23441-K03-H10Qty per bike: 1
7 GEAR, DRIVE 3 (22T) 23451-K03-H10Qty per bike: 1
8 GEAR, DRIVEN 3 (25T) 23461-KWW-740Qty per bike: 1
9 GEAR, DRIVE 4 (24T) 23471-K03-H10Qty per bike: 1
10 GEAR, DRIVEN 4 (22T) 23481-K03-H10Qty per bike: 1
11 SPROCKET, DRIVE (14T) 23801-KWW-740Qty per bike: 1
12 PLATE, FRONT SPROCKET FIXING 23802-GN5-910Qty per bike: 1
13 COLLAR, GEARBOX LOCK PLATE 23911-KPH-900Qty per bike: 1
14 SPRING 24305-KWB-600Qty per bike: 1
15 PLATE, GEARBOX LOCK 24306-KWB-600Qty per bike: 1
16 WASHER, 6.2x19x2.3 90407-KWW-740Qty per bike: 2
17 WASHER, THRUST, 15 mm 90412-187-000Qty per bike: 1
18 WASHER, SPECIAL, 12x23 90412-KPH-900Qty per bike: 2
19 WASHER, THRUST, 20 mm 90452-413-000Qty per bike: 1
20 WASHER, THRUST, 17 mm 90452-GB4-770Qty per bike: 1
21 RING, SNAP, 17 mm 90461-035-000Qty per bike: 2
22 RING, SNAP, 20 mm 90461-459-010Qty per bike: 1
23 RING, SNAP, 20 mm 90461-KWB-600Qty per bike: 1
24 WASHER, LOCK, 20 mm 90465-KWB-600Qty per bike: 1
25 CLIP, LOCK, 20 mm 90601-459-000Qty per bike: 1
25 CLIP, LOCK, 20 mm 90601-KWW-B10Qty per bike: 1
26 CLIP, LOCK, 17 mm 90601-KRM-840Qty per bike: 2
26 CLIP, LOCK, 17 mm 90601-KYY-900Qty per bike: 2
27 OIL SEAL, 17x29X5 91204-K03-H11Qty per bike: 1
28 BOLT, HEX, 6x10 92101-06010-0AQty per bike: 2
29 BOLT, FLANGE, 6x12 95701-06012-00Qty per bike: 2
30 BEARING, RADIAL BALL, 6001 96100-60010-00Qty per bike: 1
31 BEARING, RADIAL BALL, 6201 96100-62010-00Qty per bike: 1
32 BEARING, RADIAL BALL, 6203 96100-62030-00Qty per bike: 2
