SCOOPY i 2010 · E-3

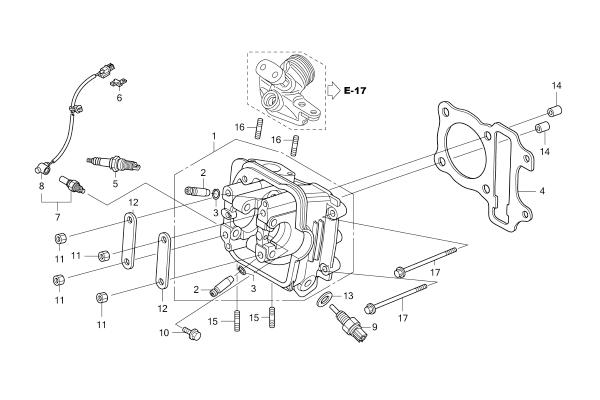

Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-3
- 1 CYLINDER HEAD ASSY 12200-KYT-900Qty per bike: 1
- 2 GUIDE, VALVE (O.S.) 12204-KVY-305Qty per bike: 2
- 3 CLIP, VALVE GUIDE 12206-KPL-900Qty per bike: 2
- 4 GASKET, CYLINDER HEAD (STD/0.25/0.50) 12251-KVY-901Qty per bike: 1
- 4 GASKET, CYLINDER HEAD 12251-KYT-901Qty per bike: 1
- 4 GASKET, CYLINDER HEAD 12252-KYT-305Qty per bike: 1
- 5 SPARK PLUG (CPR8EA-9) (NGK) 31916-KRM-841Qty per bike: 1
- 5 SPARK PLUG (U24EPR9) (DENSO) 31916-KYT-901Qty per bike: 1
- 6 HOLDER, CABLE 32121-KYT-900Qty per bike: 1
- 7 SENSOR, OXYGEN 36532-KYT-901Qty per bike: 1
- 8 WIRE, OXYGEN SENSOR 36533-KYT-901Qty per bike: 1
- 9 SENSOR, OIL TEMPERATURE 37750-KPH-701Qty per bike: 1
- 10 BOLT, FLANGE 6X10 90001-KVY-900Qty per bike: 1
- 11 NUT, HEX, 7 mm 90201-GCC-000Qty per bike: 4
- 12 PLATE 90401-KVY-900Qty per bike: 2
- 13 WASHER, SEALING, 10.2 mm 90443-MB0-000Qty per bike: 1
- 14 PIN, DOWEL, SPECIAL, 8x14 90701-KFM-900Qty per bike: 2
- 15 BOLT, STUD, 6x12 92900-06012-0BQty per bike: 2
- 16 BOLT, STUD, 6x40 92900-06040-0BQty per bike: 2
- 17 BOLT, FLANGE, 6x100 95701-06100-00Qty per bike: 2
