SCOOPY i 2010 · F-26

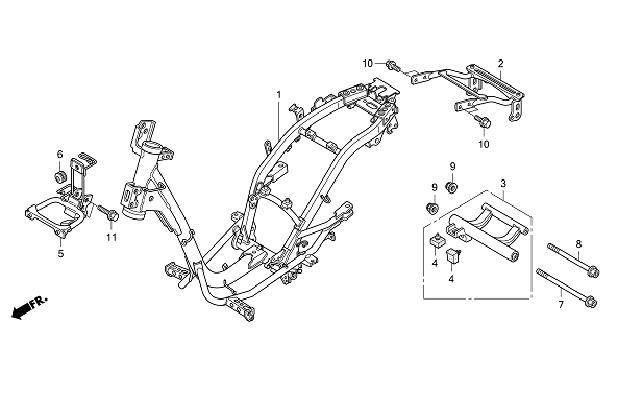

Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-26
- 1 FRAME BODY 50100-KYT-900Qty per bike: 1
- 2 SUB FRAME 50200-KYT-900Qty per bike: 1
- 3 ENGINE HANGER SET 50350-KVY-900Qty per bike: 1
- 4 RUBBER, ENGINE MOUNT 50352-KVY-900Qty per bike: 2
- 5 STAY, HEADLIGHT COVER 64223-KYT-900Qty per bike: 1
- 6 RUBBER 83551-MB9-000Qty per bike: 1
- 7 BOLT, FLANGE, 10x270 90105-KVY-900Qty per bike: 1
- 8 BOLT, FLANGE, 10x238 90106-GCC-000Qty per bike: 1
- 9 NUT, U, 10 mm (FUJI SEIMITSU) 90304-KGH-901Qty per bike: 2
- 10 BOLT, FLANGE, 6x12 95701-06012-00Qty per bike: 4
- 11 BOLT, FLANGE, 8x45 95701-08045-00Qty per bike: 2
