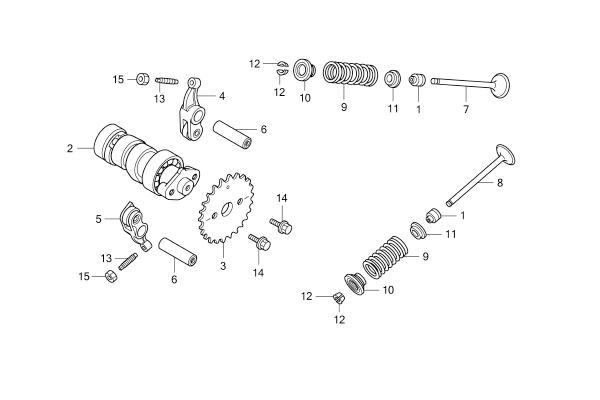

SCOOPY i 2010 · E-4 CAMSHAFT/VALVE
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-4
- 1 SEAL, VALVE STEM 12209-GB4-681Qty per bike: 2
- 2 CAMSHAFT 14100-KYT-900Qty per bike: 1
- 3 SPROCKET, CAM CHAIN 34T 14321-KVY-900Qty per bike: 1
- 4 ARM, INTAKE ROCKER 14430-KVY-901Qty per bike: 1
- 5 ARM, EXHAUST ROCKER 14440-KVY-901Qty per bike: 1
- 6 SHAFT, ROCKER ARM (INTAKE/EXHAUST) 14461-KVB-900Qty per bike: 2
- 7 VALVE, INTAKE 14711-KVY-900Qty per bike: 1
- 8 VALVE, EXHAUST 14721-KVY-900Qty per bike: 1
- 9 SPRING, VALVE 14751-KVY-900Qty per bike: 2
- 10 SEAT, VALVE SPRING 14771-GB4-680Qty per bike: 2
- 11 WASHER, VALVE SPRING 14775-KVY-900Qty per bike: 2
- 12 COTTER, VALVE 14781-MA6-000Qty per bike: 4
- 13 SCREW, VALVE ADJUSTING 90012-333-000Qty per bike: 2
- 14 BOLT, 5 mm 90083-GB6-911Qty per bike: 2
- 15 NUT, LOCK, VALVE ADJUSTING SCREW 90206-001-000Qty per bike: 2
