SCOOPY i 2010 · F-11

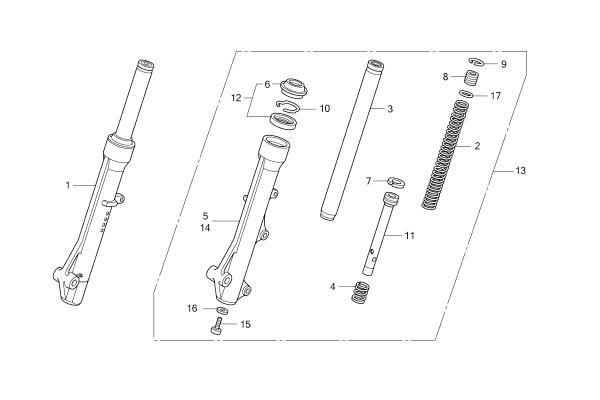

Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-11
- 1 FRONT SHOCK ABSORBER SET, RIGHT (BRONZE) 51400-KYT-901Qty per bike: 1
- 1 FRONT SHOCK ABSORBER SET, RIGHT (BLACK) 51400-KYT-921Qty per bike: 1
- 2 SPRING, FRONT FORK 51401-KVB-T01Qty per bike: 2
- 3 SHAFT, FRONT FORK 51410-KVB-T01Qty per bike: 2
- 4 SPRING, FORK PISTON 51412-GN5-901Qty per bike: 2
- 5 TUBE, RIGHT FRONT FORK (OUTER) (BRONZE) 51420-KYT-901Qty per bike: 1
- 5 TUBE, RIGHT FRONT FORK (OUTER) (BLACK) 51420-KYT-921Qty per bike: 1
- 6 SEAL, DUST 51425-GN5-901Qty per bike: 2
- 7 RING, FORK PISTON 51437-KWB-601Qty per bike: 2
- 8 SEAT, SPRING B 51454-KEV-881Qty per bike: 2
- 9 WASHER, LOCK 51456-KPH-901Qty per bike: 2
- 10 RING, OIL SEAL STOPPER 51466-065-901Qty per bike: 2
- 11 PISTON, FORK 51470-KWW-A01Qty per bike: 2
- 12 SEAL SET, FRONT FORK TUBE 51490-KGH-901Qty per bike: 2
- 13 FRONT SHOCK ABSORBER SET, LEFT SIDE (BRONZE) 51500-KYT-901Qty per bike: 1
- 13 FRONT SHOCK ABSORBER SET, LEFT SIDE (BLACK) 51500-KYT-921Qty per bike: 1
- 14 TUBE, LEFT FRONT FORK (OUTER) (BRONZE) 51520-KYT-901Qty per bike: 1
- 14 TUBE, LEFT FRONT FORK (OUTER) (BLACK) 51520-KYT-921Qty per bike: 1
- 15 BOLT, 8 mm 90116-KV3-701Qty per bike: 2
- 16 WASHER, SPECIAL, 8 mm (SHOWA) 90544-283-000Qty per bike: 2
- 17 O-RING, 15.8x2.4 91356-GM0-003Qty per bike: 2
