SCOOPY i 2010 · F-29-2

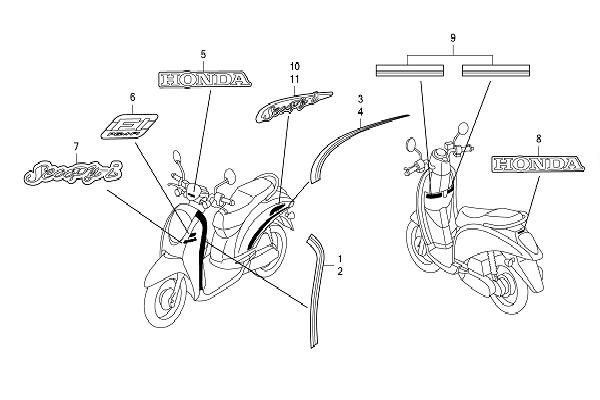

Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-29-2
- 1 STRIPE, RIGHT FRONT COVER VEHICLE (BLACK) 87104-KYT-930ZAQty per bike: 1
- 1 STRIPE, RIGHT FRONT COVER VEHICLE (WHITE) 87104-KYT-930ZBQty per bike: 1
- 1 STRIPE, RIGHT FRONT COVER VEHICLE (RED) 87104-KYT-930ZCQty per bike: 1
- 2 STRIPE, LEFT FRONT COVER VEHICLE (BLACK) 87105-KYT-930ZAQty per bike: 1
- 2 STRIPE, LEFT FRONT COVER VEHICLE (WHITE) 87105-KYT-930ZBQty per bike: 1
- 2 STRIPE, LEFT FRONT COVER VEHICLE (RED) 87105-KYT-930ZCQty per bike: 1
- 3 STICKER, RIGHT BODY COVER (BLACK) 87107-KYT-930ZAQty per bike: 1
- 3 STICKER, RIGHT BODY COVER (WHITE) 87107-KYT-930ZBQty per bike: 1
- 3 STICKER, RIGHT BODY COVER (RED) 87107-KYT-930ZCQty per bike: 1
- 4 STRIPE, LEFT BODY COVER (BLACK) 87108-KYT-930ZAQty per bike: 1
- 4 STRIPE, LEFT BODY COVER (WHITE) 87108-KYT-930ZBQty per bike: 1
- 4 STRIPE, LEFT BODY COVER (RED) 87108-KYT-930ZCQty per bike: 1
- 5 MARK, HONDA RED COLOR VEHICLE (BLACK) 87110-KYT-900ZAQty per bike: 1
- 5 MARK, HONDA (ADHESIVE) (WHITE) 87110-KYT-900ZBQty per bike: 1
- 6 MARK (FI) 87111-KWB-600Qty per bike: 1
- 7 STICKER, SCOOPY I (ALL COLORS) 87111-KYT-900ZAQty per bike: 1
- 8 MARK, HONDA (ALL COLORS) 87120-KYT-900ZAQty per bike: 1
- 9 STICKER, LUGGAGE COMPARTMENT LID (BLACK) 87121-KYT-930ZAQty per bike: 2
- 9 STICKER, LUGGAGE COMPARTMENT LID (WHITE) 87121-KYT-930ZBQty per bike: 2
- 9 STICKER, LUGGAGE COMPARTMENT LID (RED) 87121-KYT-930ZCQty per bike: 2
- 10 MARK, RIGHT REAR COVER (ALL COLORS) 87123-KYT-930ZAQty per bike: 1
- 11 MARK, LEFT REAR COVER (ALL COLORS) 87124-KYT-930ZAQty per bike: 1
This catalogue is shared by: SCOOPY i 2010. Quoted prices include purchasing service and shipping to Vietnam. Final price is confirmed by the shop when the deposit is received and may change with the exchange rate.
