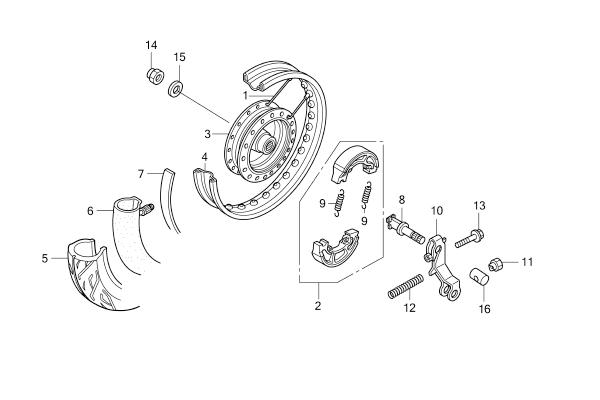

SCOOPY i 2010 · F-14
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-14
- 1 SPOKE SET (36 spokes) 06426-KVG-305Qty per bike: 1
- 2 BRAKE SHOE/PAD SET (NISSIN) 06430-KVB-900Qty per bike: 1
- 3 REAR WHEEL HUB SET (ALL COLORS) 42601-KVG-900ZAQty per bike: 1
- 4 RIM, REAR WHEEL 42701-KVG-900Qty per bike: 1
- 5 TIRE, REAR 90/90-14 M/C 46P 42711-KVG-901Qty per bike: 1
- 6 TUBE, TIRE (90/90-14) 42712-KVG-901Qty per bike: 1
- 7 BAND, RIM (FRONT) 42713-116-671Qty per bike: 1
- 8 CAM, REAR BRAKE 43141-KVB-900Qty per bike: 1
- 9 SPRING, BRAKE SHOE 43151-329-000Qty per bike: 2
- 10 ARM, REAR BRAKE 43410-KYT-900Qty per bike: 1
- 11 NUT, BRAKE ARM ADJUSTING 43459-GN5-760Qty per bike: 1
- 12 SPRING, REAR BRAKE ARM 43472-KVB-900Qty per bike: 1
- 13 BOLT, FLANGE, 6x32 90112-KVB-900Qty per bike: 1
- 14 NUT, U, 16 mm 90305-KVB-901Qty per bike: 1
- 15 WASHER, 16 mm 90501-KBN-900Qty per bike: 1
- 16 PIN, BRAKE ROD B 95015-32001Qty per bike: 1
