WAVE 110i AT 2010 · E-11

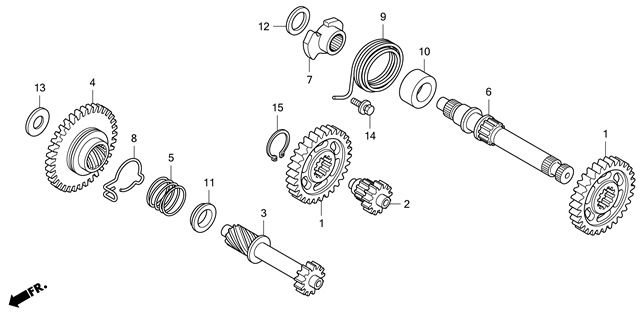

Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-11
- 1 GEAR, DRIVE 28231-KWZ-900Qty per bike: 2
- 2 SPINDLE, STARTER GEAR 28232-KWZ-900Qty per bike: 1
- 3 SPINDLE, STARTER GEAR 28233-KWZ-900Qty per bike: 1
- 4 GEAR, DRIVE 28234-KWZ-900Qty per bike: 1
- 5 SPRING, KICK STARTER SPINDLE 28242-KWZ-900Qty per bike: 1
- 6 SPINDLE, KICK STARTER 28251-KWZ-900Qty per bike: 1
- 7 HOLDER, KICK STARTER SPRING 28262-041-731Qty per bike: 1
- 8 SPRING 28271-KWZ-900Qty per bike: 1
- 9 SPRING, KICK STARTER SPINDLE 28281-KWZ-900Qty per bike: 1
- 10 COLLAR, SPRING 28282-KWZ-900Qty per bike: 1
- 11 SPRING, SEAT 90402-KWZ-900Qty per bike: 1
- 12 WASHER, SPECIAL, 12x23 90412-KPH-900Qty per bike: 1
- 13 WASHER, 12 mm 90608-072-000Qty per bike: 1
- 14 BOLT, WASHER, 6x12 93404-06012-00Qty per bike: 1
- 15 CLIP, OUTER LOCK, 20 mm 94510-20000Qty per bike: 1
