WAVE 110i AT 2010 · E-15

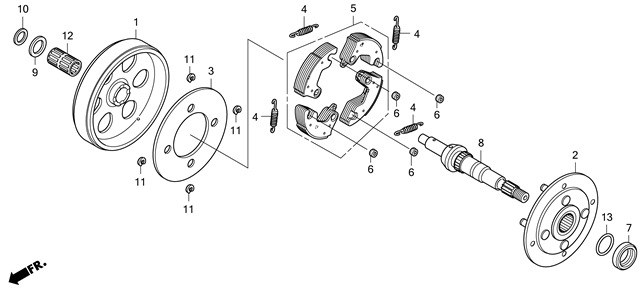

Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-15
- 1 CLUTCH OUTER HOUSING 22100-KWZ-900Qty per bike: 1
- 2 DRIVE PLATE 22350-KWZ-900Qty per bike: 1
- 3 PLATE, BAFFLE 22361-KWZ-900Qty per bike: 1
- 4 SPRING, CLUTCH 22401-KWZ-901Qty per bike: 4
- 5 CENTRIFUGAL CLUTCH SET 22535-KWZ-305Qty per bike: 1
- 6 RUBBER 22804-GB2-000Qty per bike: 4
- 7 OIL SEAL 23241-KWZ-900Qty per bike: 1
- 8 SHAFT, DRIVE 23411-KWZ-900Qty per bike: 1
- 9 WASHER 16.1X27X2.3 90401-KWZ-900Qty per bike: 1
- 10 WASHER, SPECIAL, 12x23 90412-KPH-900Qty per bike: 1
- 11 CLIP, LOCK, 7 mm 90605-166-720Qty per bike: 4
- 12 BEARING, GEAR 16X20X34 91031-KWZ-901Qty per bike: 1
- 13 O-RING 18.5X1.9 91302-KWZ-901Qty per bike: 1
