WAVE 110i AT 2010 · E-12

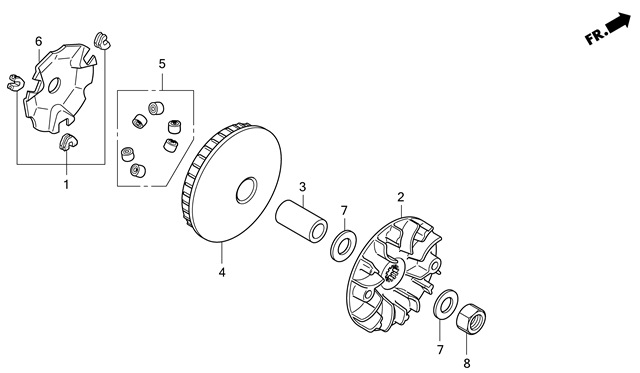

Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-12
- 1 SLIDE PLATE SET 22011-KVB-T00Qty per bike: 1
- 2 PULLEY, POWER TRANSMISSION 22102-KWZ-900Qty per bike: 1
- 3 CONTROLLER, PULLEY 22105-GGE-900Qty per bike: 1
- 4 MOVABLE FACE, PULLEY 22110-KWZ-900Qty per bike: 1
- 5 WEIGHT SET 22123-KWZ-305Qty per bike: 1
- 6 PLATE, CURVED 22131-KVB-900Qty per bike: 1
- 7 WASHER 15.1 mm 90426-KWZ-900Qty per bike: 2
- 8 NUT, HEX, 14 mm 94030-14200Qty per bike: 1
