WAVE 110i AT 2010 · E-6 Q 27 12 13

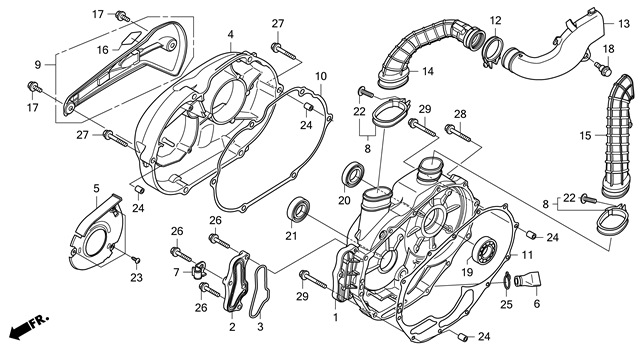

Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-6
- 1 COVER SET 11320-KWZ-900Qty per bike: 1
- 2 LID, OIL CHAMBER 11322-KWZ-900Qty per bike: 1
- 3 GASKET SET 11323-KWZ-901Qty per bike: 1
- 4 COVER, RIGHT CRANKCASE 11331-KWZ-900Qty per bike: 1
- 5 TUBE, AIR PASSAGE 11332-KWZ-900Qty per bike: 1
- 6 TUBE, DRAIN 11343-KVG-900Qty per bike: 1
- 7 HOLDER, OIL TEMPERATURE SENSOR WIRE 11346-KTR-940Qty per bike: 1
- 8 STRAP, CLUTCH COVER 11346-KWZ-900Qty per bike: 2
- 9 STICKER, RIGHT COVER 11370-KWZ-900Qty per bike: 1
- 10 GASKET, RIGHT CRANKCASE COVER 11394-KWZ-900Qty per bike: 1
- 11 GASKET, CLUTCH COVER 11395-KWZ-900Qty per bike: 1
- 12 BAND, AIR TUBE (40) 17254-KVB-T00Qty per bike: 1
- 13 COVER, RIGHT SIDE 19741-KWZ-900Qty per bike: 1
- 14 COVER, RIGHT SIDE 19742-KWZ-900Qty per bike: 1
- 15 COVER, RIGHT SIDE 19743-KWZ-900Qty per bike: 1
- 16 STICKER, BODY COVER 87111-KWZ-900Qty per bike: 1
- 17 BOLT, FLANGE, 6x12 90005-GHB-610Qty per bike: 2
- 18 BOLT, FLANGE 6 mm 90114-KWZ-900Qty per bike: 1
- 19 BEARING 91005-KWZ-901Qty per bike: 1
- 19 BEARING, RADIAL BALL 6204 91102-GE0-003Qty per bike: 1
- 20 OIL SEAL 30X42X5 91201-KWZ-902Qty per bike: 1
- 21 OIL SEAL 27X37X7 91203-459-771Qty per bike: 1
- 22 SCREW 4X25 93500-04025-0GQty per bike: 2
- 23 SCREW, TAPPING, 4x8 93903-34120Qty per bike: 3
- 24 PIN, DOWEL, 8x14 94301-08140Qty per bike: 4
- 25 CLIP, TUBE (C12) 95002-80000Qty per bike: 1
- 26 BOLT, FLANGE, 6x25 96001-06025-00Qty per bike: 3
- 27 BOLT, FLANGE, 6x35 96001-06035-00Qty per bike: 6
- 28 BOLT, FLANGE, 6x40 96001-06040-00Qty per bike: 10
- 29 BOLT, FLANGE 6X45 96001-06045-00Qty per bike: 2
