WAVE 110i AT 2010 · E-18

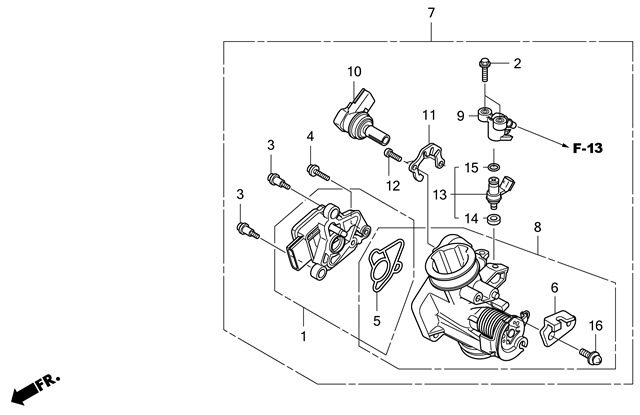

Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-18
- 1 SENSOR SET 16060-GEY-642Qty per bike: 1
- 2 BOLT, FLANGE, 5x20 16080-KPH-701Qty per bike: 1
- 3 SCREW, 5x8.7 16081-KPH-701Qty per bike: 2
- 4 SCREW, 5x17 16082-KPH-701Qty per bike: 2
- 5 O-RING, THROTTLE BODY 16083-KTR-941Qty per bike: 1
- 6 STAY 16169-KTM-D21Qty per bike: 1
- 7 THROTTLE VALVE SET 16400-KWZ-901Qty per bike: 1
- 8 THROTTLE BODY ASSY 16410-KWZ-901Qty per bike: 1
- 9 JOINT, INJECTOR 16422-GBJ-M31Qty per bike: 1
- 10 IDLE AIR CONTROL VALVE SET 16430-KTM-D21Qty per bike: 1
- 11 PLATE, IDLE AIR CONTROL VALVE SET MOUNTING 16432-GFM-901Qty per bike: 1
- 12 SCREW 16433-HN8-A61Qty per bike: 2
- 13 INJECTOR SET, FUEL 16450-KSS-B31Qty per bike: 1
- 14 SEAL, INJECTOR 16472-KPH-701Qty per bike: 1
- 15 O-RING, 7.3x2.2 91301-KPH-701Qty per bike: 1
- 16 SCREW, WASHER, 5x12 93892-05012-18Qty per bike: 1
