WAVE 110i AT 2010 · E-14

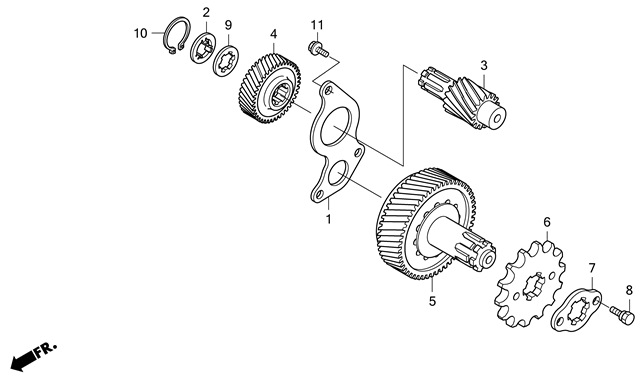

Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-14
- 1 PLATE, BEARING LOCK 11108-KWZ-900Qty per bike: 1
- 2 WASHER, LOCK 17 23217-KWZ-900Qty per bike: 1
- 3 SHAFT, DRIVEN 23421-KWZ-900Qty per bike: 1
- 4 GEAR, DRIVEN 23422-KWZ-900Qty per bike: 1
- 5 GEAR, TRANSMISSION 23430-KWZ-900Qty per bike: 1
- 6 SPROCKET, DRIVE (14T) 23801-KTE-910Qty per bike: 1
- 7 PLATE, FRONT SPROCKET FIXING 23811-KR3-600Qty per bike: 1
- 8 BOLT, FRONT SPROCKET PLATE MOUNTING 90084-041-000Qty per bike: 2
- 9 RING, GROOVED 17 mm 90462-KFL-850Qty per bike: 1
- 10 CLIP, LOCK 17 mm 94510-17000Qty per bike: 1
- 11 BOLT, FLANGE, 6x12 95701-06012-00Qty per bike: 3
