WAVE 110i AT 2010 · E-17

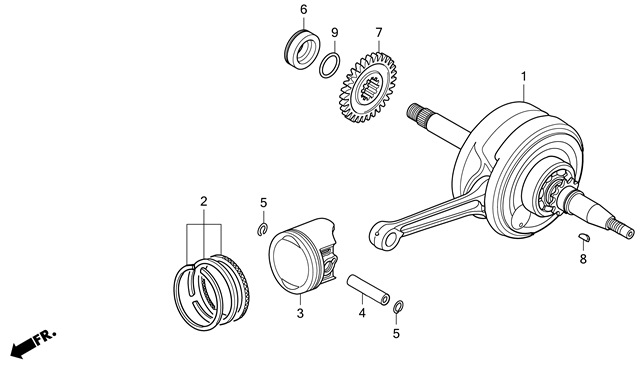

Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-17
- 1 CRANK SET 13000-KWZ-900Qty per bike: 1
- 2 RING, PISTON 13021-KVB-T00Qty per bike: 1
- 2 RING, PISTON 13031-KVB-T00Qty per bike: 1
- 2 PISTON RING 0.75 13041-KVB-T00Qty per bike: 1
- 2 RING, PISTON 13051-KVB-T00Qty per bike: 1
- 3 PISTON 13101-KWZ-900Qty per bike: 1
- 3 PISTON 0.25 13102-KWZ-305Qty per bike: 1
- 3 PISTON 0.50 13103-KWZ-305Qty per bike: 1
- 3 PISTON 0.75 13104-KWZ-305Qty per bike: 1
- 3 PISTON 1.00 13105-KWZ-305Qty per bike: 1
- 4 PIN, PISTON 13111-087-000Qty per bike: 1
- 5 CLIP, PISTON PIN, 13 mm 13115-GN5-910Qty per bike: 2
- 6 COLLAR 13312-KWZ-900Qty per bike: 1
- 7 GEAR, DRIVE 28235-KWZ-900Qty per bike: 1
- 8 KEY, 4 mm 90741-003-010Qty per bike: 1
- 9 O-RING, 14.8x2.4 91303-KF0-003Qty per bike: 1
