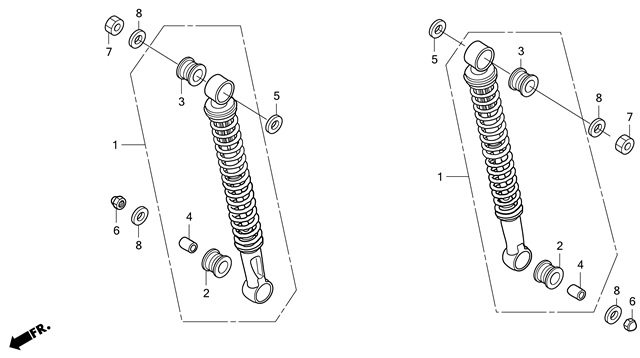

WAVE 110i AT 2010 · F-21
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-21
- 1 SHOCK ABSORBER, REAR 52400-KWZ-901Qty per bike: 2
- 2 BUSH, REAR SHOCK ABSORBER EYE 52485-GA7-003Qty per bike: 2
- 3 BUSH, REAR SHOCK ABSORBER (SHOWA) 52485-KVY-901Qty per bike: 2
- 4 COLLAR, REAR SHOCK ABSORBER BUSH INNER (SHOWA) 52486-GA7-003Qty per bike: 2
- 5 WASHER 52486-KWZ-900Qty per bike: 2
- 6 NUT, HEX CAP, 10 mm 90301-KPH-700Qty per bike: 2
- 7 NUT, HEX, 10 mm 94001-10000-0SQty per bike: 2
- 8 WASHER, 10 mm 94101-10000Qty per bike: 4
This catalogue is shared by: WAVE 110i AT 2010. Quoted prices include purchasing service and shipping to Vietnam. Final price is confirmed by the shop when the deposit is received and may change with the exchange rate.
