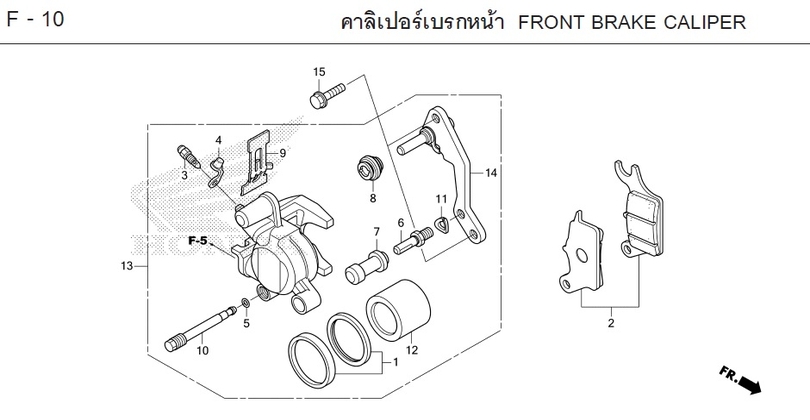

WAVE 110i 2023 · F-10 FRONT BRAKE CALIPER
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-10
- 1 CALIPER PISTON SEAL SET 06451-961-405Qty per bike: 1
- 2 PAD SET, FRONT BRAKE 06455-KWB-601Qty per bike: 1
- 3 SCREW, AIR BLEED (NISSIN) 43352-568-003Qty per bike: 1
- 3 SCREW, AIR BLEED (BRAKE) 43352-K81-N01Qty per bike: 1
- 4 CAP, AIR BLEED SCREW 43353-461-771Qty per bike: 1
- 5 WASHER, LOCK 45111-MAJ-G41Qty per bike: 1
- 6 BOLT, BRAKE PAD PIN 45131-GZ0-006Qty per bike: 1
- 6 BOLT, BRAKE CALIPER PIN 45131-K81-N01Qty per bike: 1
- 7 BUSH, BRAKE PAD PIN RUBBER (NISSIN) 45132-166-016Qty per bike: 1
- 8 BOOT, DUST B 45133-MA3-006Qty per bike: 1
- 9 SPRING, BRAKE PAD 45208-KWB-601Qty per bike: 1
- 10 PIN, BRAKE PAD 45215-KPH-951Qty per bike: 1
- 11 WASHER 45216-166-006Qty per bike: 1
- 12 PISTON, CALIPER 45218-KWB-601Qty per bike: 1
- 13 CALIPER SET, FRONT BRAKE 45250-K47-M01Qty per bike: 1
- 14 CALIPER BRACKET SET, FRONT BRAKE 45290-KWB-601Qty per bike: 1
- 15 BOLT, FLANGE, 8x25 90155-GGZ-J00Qty per bike: 2
