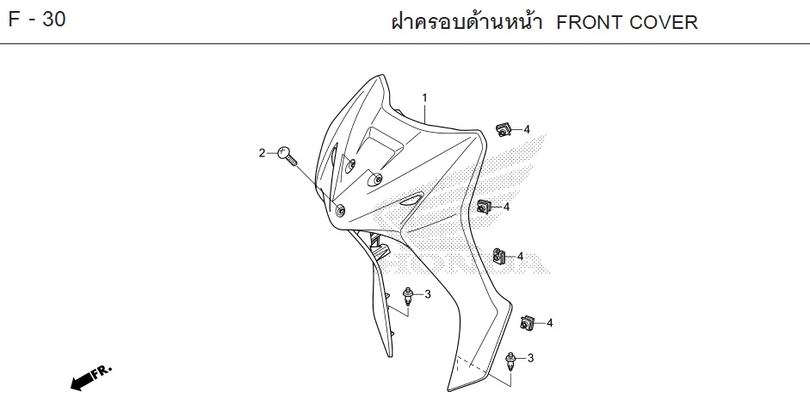

WAVE 110i 2023 · F-30 FRONT COVER
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-30
- 1 COVER SET, UPPER FRONT (WL) (RED-BLACK) 64200-K2J-T20ZAQty per bike: 1
- 1 COVER SET, UPPER FRONT (WL) (BLACK) 64200-K2J-T20ZBQty per bike: 1
- 1 COVER SET, UPPER FRONT (WL) (BLACK-RED) 64200-K2J-TL0ZAQty per bike: 1
- 1 COVER SET, UPPER FRONT (WL) (RED-BLACK) 64200-K2J-TL0ZBQty per bike: 1
- 1 COVER SET, UPPER FRONT (WL) 64200-K2J-TL0ZCQty per bike: 1
- 1 COVER SET, UPPER FRONT WL (WL) (WHITE-RED) 64200-K2J-TP0ZAQty per bike: 1
- 1 COVER SET, UPPER FRONT (WL) (BLACK-RED) 64200-K2J-TP0ZBQty per bike: 1
- 1 COVER SET, UPPER FRONT (WL) (RED) 64200-K2J-TP0ZCQty per bike: 1
- 1 COVER SET, UPPER FRONT WL (WL) (BLUE) 64200-K2J-TP0ZDQty per bike: 1
- 2 SCREW, 6x25 90114-GB4-810Qty per bike: 3
- 3 CLIP, LOCK 90116-SP0-003Qty per bike: 2
- 4 NUT, CLIP, 5 mm 90677-KAN-T00Qty per bike: 8
This catalogue is shared by: WAVE 110i 2023. Quoted prices include purchasing service and shipping to Vietnam. Final price is confirmed by the shop when the deposit is received and may change with the exchange rate.
