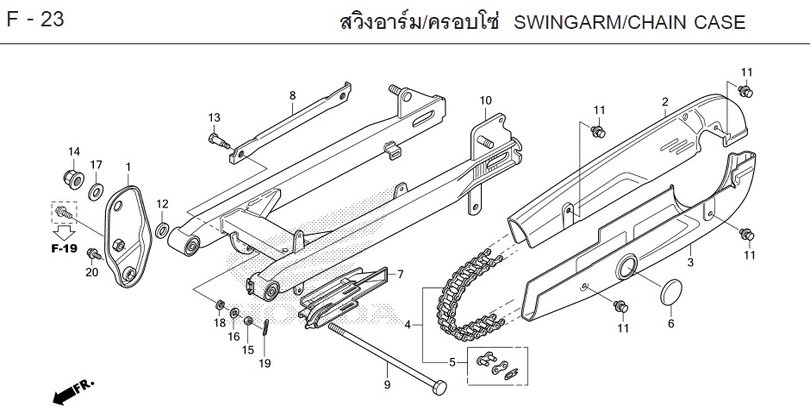

WAVE 110i 2023 · F-23 SWINGARM/CHAIN CASE
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-23
- 1 PLATE, EXHAUST PIPE MOUNTING 18315-K2J-T11Qty per bike: 1
- 2 COVER, UPPER CHAIN (ALL COLORS) 40510-K1M-T00ZAQty per bike: 1
- 2 COVER, UPPER CHAIN (ALL COLORS) 40510-K1M-T00ZBQty per bike: 1
- 3 COVER, LOWER CHAIN (ALL COLORS) 40520-K1M-T00ZAQty per bike: 1
- 3 COVER, LOWER CHAIN (ALL COLORS) 40520-K1M-T00ZBQty per bike: 1
- 4 CHAIN, DRIVE 40530-K1M-T01Qty per bike: 1
- 4 CHAIN, DRIVE DID420AD2-104RB 40530-K58-T81Qty per bike: 1
- 5 JOINT, CHAIN 40531-KWB-601Qty per bike: 1
- 5 JOINT, CHAIN 40531-KWB-602Qty per bike: 1
- 6 CAP, CHAIN CASE HOLE 40545-001-000Qty per bike: 1
- 7 RUBBER, CHAIN 40591-KWW-640Qty per bike: 1
- 8 STAY, REAR BRAKE DISK 43431-KWW-640Qty per bike: 1
- 9 BOLT, SWINGARM PIVOT 52101-KWB-920Qty per bike: 1
- 10 SWINGARM (ALL COLORS) 52200-KWW-E00ZAQty per bike: 1
- 10 SWINGARM (ALL COLORS) 52200-KWW-E00ZDQty per bike: 1
- 11 BOLT, WASHER, 6x6 90118-383-000Qty per bike: 4
- 12 WASHER, SWINGARM PIVOT BOLT 90122-KWB-600Qty per bike: 1
- 13 BOLT, REAR BRAKE DISK STAY MOUNTING A 90126-KWB-600Qty per bike: 1
- 14 NUT, U, 12 mm (FUJI SEIMITSU) 90306-KGH-901Qty per bike: 1
- 15 NUT, HEX, 8 mm 94001-08000-0SQty per bike: 1
- 16 WASHER, 8 mm 94101-08000Qty per bike: 1
- 17 WASHER, 12 mm 94101-12000Qty per bike: 1
- 18 WASHER, SPRING, 10 mm 94111-10000Qty per bike: 1
- 19 PIN, COTTER, 2.0x15 94201-20150Qty per bike: 1
- 20 BOLT, FLANGE, 8x16 95701-08016-08Qty per bike: 1
