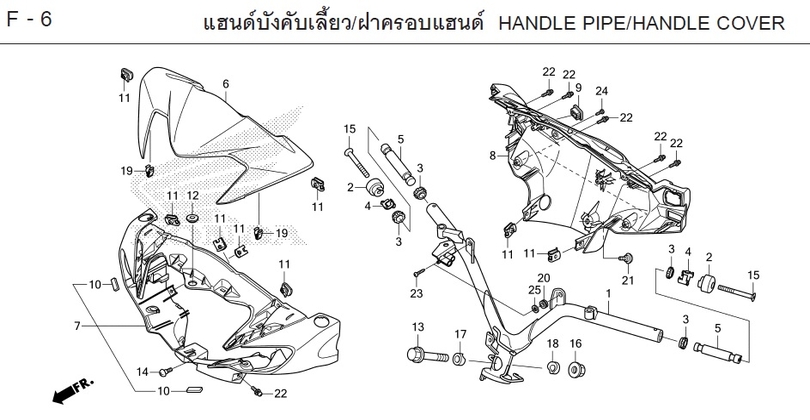

WAVE 110i 2023 · F-6 HANDLE PIPE/HANDLE COVER
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-6
- 1 HANDLEBAR SET 53100-K2J-T80Qty per bike: 1
- 1 HANDLEBAR SET 53100-K2J-TA0Qty per bike: 1
- 1 HANDLEBAR SET 53100-K2J-TB0Qty per bike: 1
- 2 WEIGHT, OUTER A 53105-KWW-640Qty per bike: 2
- 3 RUBBER, WEIGHT MOUNTING 53107-KW7-930Qty per bike: 4
- 4 WASHER, WEIGHT LOCK 53108-KR3-770Qty per bike: 2
- 5 WEIGHT B, INNER 53125-K1M-T00Qty per bike: 2
- 6 COVER, UPPER HANDLE 53203-K58-TC0ZFQty per bike: 1
- 6 COVER, UPPER HANDLE (WHITE/RED) 53203-K58-TC0ZKQty per bike: 1
- 6 COVER, UPPER HANDLE (RED/GRAY) 53203-K58-TC0ZLQty per bike: 1
- 6 COVER, UPPER HANDLE, RED COLOR VEHICLE (RED/BLACK) 53203-K58-TC0ZNQty per bike: 1
- 6 COVER, UPPER HANDLE 53203-K58-TC0ZPQty per bike: 1
- 7 COVER, FRONT HANDLE (ALL COLORS) 53205-K58-TC0ZAQty per bike: 1
- 8 COVER, REAR HANDLE 53206-K58-TC0Qty per bike: 1
- 8 COVER, REAR HANDLE (BLACK/RED) 53206-K58-TF0ZAQty per bike: 1
- 8 COVER, REAR HANDLE (BLUE/LIGHT BLUE) 53206-K58-TF0ZFQty per bike: 1
- 8 COVER, REAR HANDLE 53206-K58-TF0ZHQty per bike: 1
- 9 CAP, HANDLE COVER 53207-KWW-600Qty per bike: 1
- 10 RUBBER, HANDLE COVER 53209-K58-TC0Qty per bike: 2
- 11 NUT, CLIP, 4 mm 64521-MN5-000Qty per bike: 8
- 12 RUBBER, TAILLIGHT 83601-MN5-000Qty per bike: 1
- 13 BOLT, FLANGE, 10x48 90102-KWW-640Qty per bike: 1
- 14 SCREW, SPECIAL, 5 mm 90104-KPH-900Qty per bike: 1
- 15 SCREW, 6x45 90191-KWB-600Qty per bike: 2
- 16 NUT, U, 10 mm (FUJI SEIMITSU) 90304-KGH-901Qty per bike: 1
- 17 COLLAR A, HANDLEBAR MOUNTING 90501-KPH-880Qty per bike: 1
- 18 COLLAR B, HANDLEBAR MOUNTING 90505-KPH-880Qty per bike: 1
- 19 CLIP, LOCK (PO) 90666-K59-A11Qty per bike: 2
- 20 RUBBER, TAILLIGHT 90851-961-000Qty per bike: 1
- 21 SCREW, 5x11.5 91509-GE2-760Qty per bike: 1
- 22 SCREW, WASHER, 4x16 93891-04016-07Qty per bike: 8
- 23 SCREW, TAPPING, 4x16 93903-24420Qty per bike: 2
- 24 SCREW, TAPPING, 4x12 93903-34320Qty per bike: 1
- 25 WASHER, 4 mm 94103-04700Qty per bike: 1
