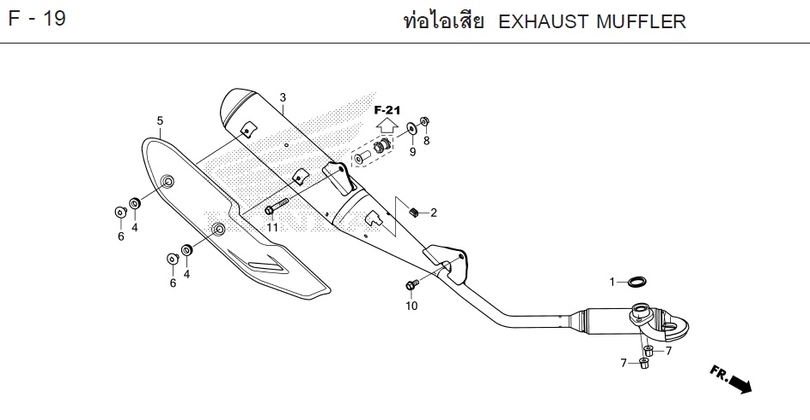

WAVE 110i 2023 · F-19 EXHAUST MUFFLER
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-19
- 1 GASKET, EXHAUST PIPE 18291-GE2-920Qty per bike: 1
- 2 RUBBER, MUFFLER HEAT GUARD 18293-MCA-A20Qty per bike: 1
- 3 EXHAUST PIPE 18300-K2J-T01Qty per bike: 1
- 4 RUBBER, EXHAUST HEAT GUARD 18345-MBT-610Qty per bike: 2
- 5 GUARD, EXHAUST PIPE HEAT 18355-K2J-T00Qty per bike: 1
- 6 SCREW, 6x12 90113-KTA-920Qty per bike: 2
- 7 NUT, FLANGE, 8 mm 90301-KWB-600Qty per bike: 2
- 8 NUT, FLANGE, 8 mm 94050-08000Qty per bike: 1
- 9 WASHER, 8 mm 94103-08000Qty per bike: 1
- 11 BOLT, FLANGE, 8x45 95701-08045-00Qty per bike: 1
This catalogue is shared by: WAVE 110i 2023. Quoted prices include purchasing service and shipping to Vietnam. Final price is confirmed by the shop when the deposit is received and may change with the exchange rate.
