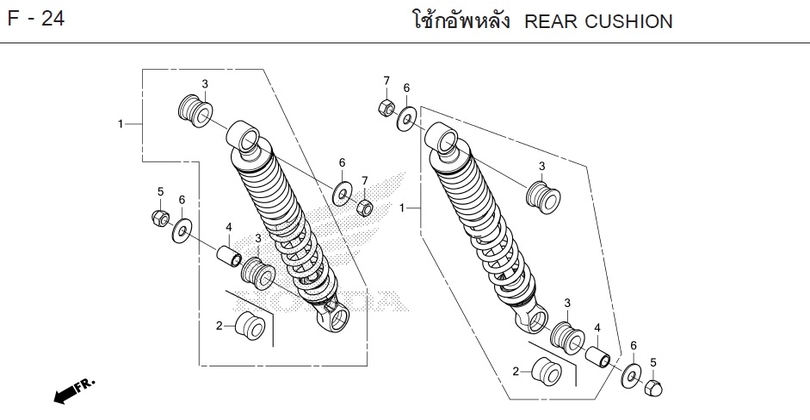

WAVE 110i 2023 · F-24 REAR CUSHION
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-24
- 1 REAR SHOCK ABSORBER SET 52400-K2J-T01Qty per bike: 2
- 1 REAR SHOCK ABSORBER SET 52400-K2J-T21Qty per bike: 2
- 1 REAR SHOCK ABSORBER SET 52400-K2J-T31Qty per bike: 2
- 2 BUSH, REAR SHOCK ABSORBER EYE 52485-GGC-901Qty per bike: 2
- 3 BUSH, REAR SHOCK ABSORBER (SHOWA) 52485-KVY-901Qty per bike: 4
- 3 BUSH, REAR SHOCK ABSORBER EYE 52489-K1M-T01Qty per bike: 2
- 4 COLLAR, REAR SHOCK ABSORBER BUSH INNER (SHOWA) 52486-GA7-003Qty per bike: 2
- 4 COLLAR, INNER REAR SHOCK ABSORBER EYE BUSH 52486-GGC-901Qty per bike: 2
- 5 NUT, HEX CAP, 10 mm 90301-KPH-700Qty per bike: 2
- 6 WASHER, 10 mm 90501-KWW-640Qty per bike: 4
- 7 NUT, HEX, 10 mm 94001-10080-0SQty per bike: 2
