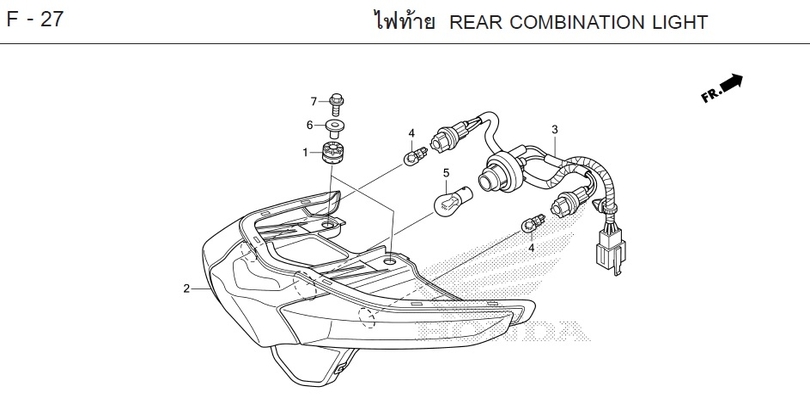

WAVE 110i 2023 · F-27 REAR COMBINATION LIGHT
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-27
- 1 RUBBER A 33705-KW7-900Qty per bike: 2
- 2 TAILLIGHT UNIT 33710-K58-TC1Qty per bike: 1
- 3 TAILLIGHT BULB SOCKET SET 33750-K58-TC1Qty per bike: 1
- 4 BULB, REAR TURN SIGNAL 12V 10W 34905-KAN-W01Qty per bike: 2
- 5 BULB, TAILLIGHT (12V 18/5W) 34906-GB6-921Qty per bike: 1
- 6 COLLAR (WHITE) (FOR REAR) 61104-428-010Qty per bike: 2
- 7 BOLT, FLANGE, 6x25 95701-06025-00Qty per bike: 2
