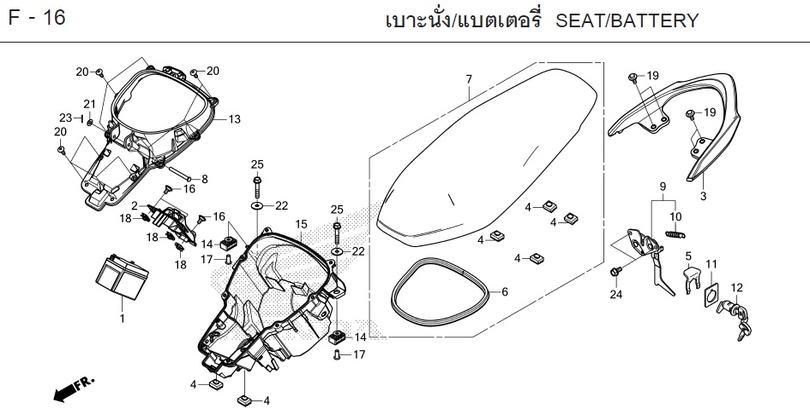

WAVE 110i 2023 · F-16 SEAT/BATTERY
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-16
- 1 BATTERY (YTZ3V) 31500-K58-T01Qty per bike: 1
- 1 BATTERY (FTZ4V) 31500-KVB-T01Qty per bike: 1
- 1 BATTERY (YTZ4V) 31500-KVB-T02Qty per bike: 1
- 1 BATTERY (FTZ3V) 31500-KWB-601Qty per bike: 1
- 2 LID, BATTERY 50381-K2J-T10Qty per bike: 1
- 3 GRAB HANDLE, REAR 50400-K2J-T10Qty per bike: 1
- 4 RUBBER, SEAT 50524-KEV-900Qty per bike: 6
- 5 SPRING, SEAT LOCK KEY 75581-GN8-920Qty per bike: 1
- 6 SEAL, RUBBER 77115-K2J-T10Qty per bike: 1
- 7 SEAT ASSY 77200-K2J-T10Qty per bike: 1
- 7 SEAT ASSY (WHITE/RED) 77200-K2J-TP0ZAQty per bike: 1
- 7 SEAT ASSY 77200-K2J-TP0ZBQty per bike: 1
- 8 PIN, SEAT HINGE 77215-KZL-930Qty per bike: 1
- 9 SEAT LOCK SET 77230-K2J-T10Qty per bike: 1
- 10 SPRING, SEAT LOCK 77234-GN2-000Qty per bike: 1
- 11 WASHER, LOCK 77236-GW0-000Qty per bike: 1
- 12 KEY SET, SEAT LOCK 77240-KPH-691Qty per bike: 1
- 13 UTILITY BOX, UPPER 81250-K2J-T10Qty per bike: 1
- 14 RUBBER, REAR UTILITY BOX 81256-GCE-900Qty per bike: 2
- 15 UTILITY BOX, LOWER 81350-K2J-T10Qty per bike: 1
- 16 SCREW, SPECIAL, 5 mm 90104-KZ3-B00Qty per bike: 3
- 17 COLLAR, 6.2x21.5 90502-K2J-T10Qty per bike: 2
- 18 NUT, CLIP, 5 mm 90677-KAN-961Qty per bike: 3
- 19 BOLT, WASHER, 8x25 93414-08025-08Qty per bike: 4
- 20 SCREW, TAPPING, 5x16 93903-25310Qty per bike: 10
- 21 WASHER, 8 mm 94101-08000Qty per bike: 1
- 22 WASHER, 6 mm 94103-06000Qty per bike: 2
- 23 PIN, COTTER, 1.6x18 94201-16180Qty per bike: 1
- 24 BOLT, FLANGE, 6x12 95701-06012-00Qty per bike: 2
- 25 BOLT, FLANGE, 6x35 95701-06035-08Qty per bike: 2
This catalogue is shared by: WAVE 110i 2023. Quoted prices include purchasing service and shipping to Vietnam. Final price is confirmed by the shop when the deposit is received and may change with the exchange rate.
