WAVE 110i 2023 · F-13 REAR BRAKE PANEL

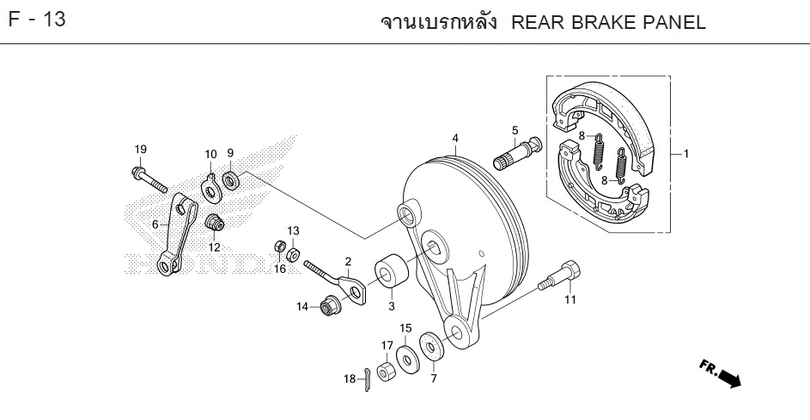

Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-13
- 1 BRAKE SHOE/PAD SET 06430-KPH-900Qty per bike: 1
- 2 ADJUSTER, RIGHT CHAIN 40543-KWB-600Qty per bike: 1
- 3 COLLAR, REAR BRAKE DISK SIDE 42313-GBG-B20Qty per bike: 1
- 4 DISK, REAR BRAKE (ALL COLORS) 43100-KWW-640ZBQty per bike: 1
- 4 DISK, REAR BRAKE (ALL COLORS) 43100-KWW-640ZDQty per bike: 1
- 5 CAM, BRAKE (FOR FRONT) 43141-KTL-640Qty per bike: 1
- 6 ARM, REAR BRAKE 43410-K76-K20Qty per bike: 1
- 7 RUBBER, REAR BRAKE DISK STAY 43434-ME1-670Qty per bike: 1
- 9 SEAL, BRAKE CAM DUST 45134-250-000Qty per bike: 1
- 10 MARK, REAR BRAKE WEAR INDICATOR 45145-KFM-900Qty per bike: 1
- 11 BOLT, REAR BRAKE DISK STAY MOUNTING A 90127-KWB-600Qty per bike: 1
- 12 NUT, U, 6 mm (FUJI SEIMITSU) 90301-KGH-901Qty per bike: 1
- 13 NUT, SPECIAL, 6 mm 90302-KBP-900Qty per bike: 1
- 14 NUT, U, 12 mm (FUJI SEIMITSU) 90306-KGH-901Qty per bike: 1
- 15 WASHER, 8 mm 90505-425-000Qty per bike: 1
- 16 NUT, HEX, 6 mm 94001-06000-0SQty per bike: 1
- 17 NUT, HEX, 8 mm 94001-08000-0SQty per bike: 1
- 18 PIN, COTTER, 2.0x15 94201-20150Qty per bike: 1
- 19 BOLT, FLANGE, 6x35 95701-06035-00Qty per bike: 1
