WAVE 110i 2023 · F-20 PEDAL/KICK ARM

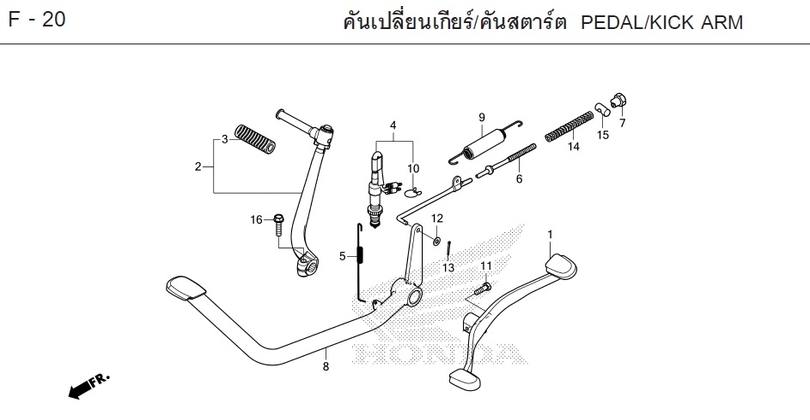

Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-20
- 1 PEDAL, GEARSHIFT 24701-K1M-T00Qty per bike: 1
- 2 KICK STARTER ARM 28300-K1M-T00Qty per bike: 1
- 3 RUBBER, KICK STARTER ARM 28311-KZV-T00Qty per bike: 1
- 4 SWITCH SET, REAR STOP LIGHT 35350-K1M-T01Qty per bike: 1
- 5 SPRING, REAR STOP SWITCH 35357-K1M-T00Qty per bike: 1
- 6 ROD, REAR BRAKE 43451-KZV-T00Qty per bike: 1
- 7 NUT, BRAKE ARM ADJUSTING 43459-GN5-760Qty per bike: 1
- 7 NUT, BRAKE ADJUSTING B 95015-42000Qty per bike: 1
- 8 LEVER, REAR BRAKE 46500-K1M-T00Qty per bike: 1
- 9 SPRING, RETURN 46513-KZV-Y00Qty per bike: 1
- 10 CLIP, REAR STOP SWITCH COVER 90601-KAF-003Qty per bike: 1
- 11 BOLT, HEX, 6x20 92101-06020-0AQty per bike: 1
- 12 WASHER, 5 mm 94101-05000Qty per bike: 1
- 13 PIN, COTTER, 2.0x15 94201-20150Qty per bike: 1
- 14 SPRING, BRAKE ROD A 95014-73100Qty per bike: 1
- 15 PIN, BRAKE ROD B 95015-32001Qty per bike: 1
- 16 BOLT, FLANGE, 6x25 95701-06025-08Qty per bike: 1
