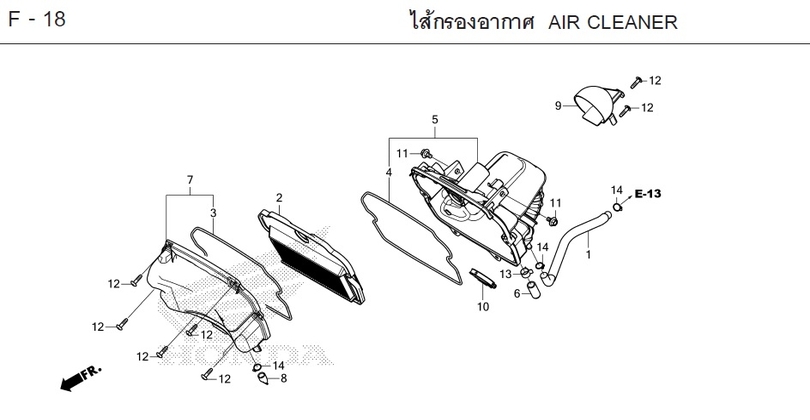

WAVE 110i 2023 · F-18 AIR CLEANER
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-18
- 1 TUBE, BREATHER 15761-K1M-T00Qty per bike: 1
- 2 ELEMENT, AIR CLEANER 17210-K1M-T00Qty per bike: 1
- 3 SEAL, AIR CLEANER CASE COVER 17213-K1M-T00Qty per bike: 1
- 4 SEAL, AIR CLEANER CASE 17214-K1M-T00Qty per bike: 1
- 5 AIR CLEANER CASE SET 17225-K1M-T00Qty per bike: 1
- 6 TUBE, VINYL (CLEAR), 11x15x35 17227-KPK-900Qty per bike: 1
- 7 AIR CLEANER CASE COVER SET 17235-K1M-T00Qty per bike: 1
- 8 PLUG, AIR VENT HOLE 17236-KVB-900Qty per bike: 1
- 9 PLATE, GUIDE 17238-K1M-T00Qty per bike: 1
- 10 BAND, AIR TUBE (42) 17256-K90-V00Qty per bike: 1
- 11 BOLT, FLANGE, 6 mm 90116-KVB-900Qty per bike: 2
- 12 SCREW, TAPPING, 5x20 93903-25480Qty per bike: 8
- 13 BAND, HOSE (D13) 95002-41300-08Qty per bike: 1
- 14 CLIP, TUBE (C12) 95002-80000Qty per bike: 3
