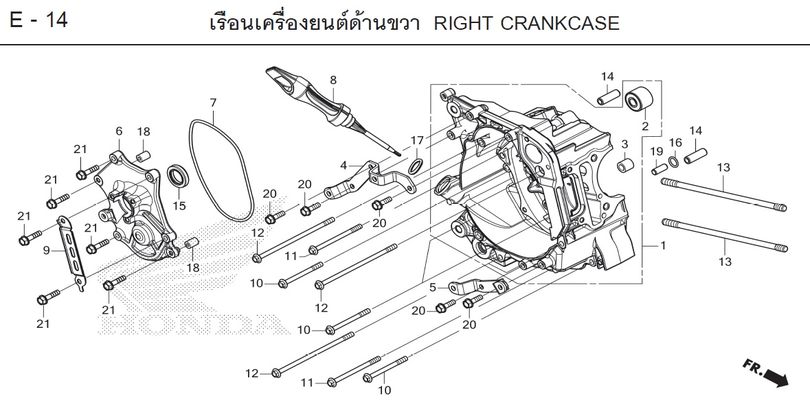

GIORNO 2026 · E-14 RIGHT CRANKCASE
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-14
- 1 CRANKCASE SET, RIGHT 11100-K1N-V00Qty per bike: 1
- 2 BUSH, ENGINE HANGER (HOKUSHIN) 11103-KVB-901Qty per bike: 1
- 3 BUSH, MAIN STAND 11205-GBC-300Qty per bike: 1
- 4 STAY, UPPER ENGINE MOUNTING 11320-K0R-V00Qty per bike: 1
- 5 STAY, LOWER ENGINE MOUNTING 11330-K0R-V00Qty per bike: 1
- 6 BASE, STATOR COIL SET 11361-K0R-V00Qty per bike: 1
- 6 BASE, STATOR COIL SET 11361-K3V-N00Qty per bike: 1
- 7 GASKET, STATOR COIL BASE 11363-K0R-V00Qty per bike: 1
- 8 DIPSTICK, OIL LEVEL 15651-K1N-V00Qty per bike: 1
- 8 DIPSTICK, OIL LEVEL 15651-K1Y-DC0Qty per bike: 1
- 9 BAND, A.C. GENERATOR WIRE 32961-K0R-V00Qty per bike: 1
- 10 BOLT, FLANGE, 6x65 (LNSH) 90006-K0R-V00Qty per bike: 4
- 11 BOLT, FLANGE, 6x80 (LNSH) 90007-K0R-V00Qty per bike: 2
- 12 BOLT, FLANGE, 6X130(LNSH) 90008-K0R-V00Qty per bike: 4
- 13 BOLT, STUD A, 8x209.2 90031-K0R-V00Qty per bike: 2
- 14 PIN, DOWEL, SPECIAL, 6.3x10x30 90702-KWN-900Qty per bike: 2
- 15 OIL SEAL, 20.8x32x6 (ARAI) 91201-K35-J01Qty per bike: 1
- 15 OIL SEAL, 20.8x32x6 (NOK) 91201-K59-A11Qty per bike: 1
- 16 O-RING, 8 mm 91303-001-010Qty per bike: 1
- 17 O-RING, 18x3 91307-035-000Qty per bike: 1
- 18 PIN, DOWEL, 8x10 94301-08100Qty per bike: 2
- 19 PIN, DOWEL, 8x20 94301-08200Qty per bike: 1
- 20 BOLT, FLANGE, 6x20 95701-06020-00Qty per bike: 5
- 21 BOLT, FLANGE, 6x25 95701-06025-00Qty per bike: 6
