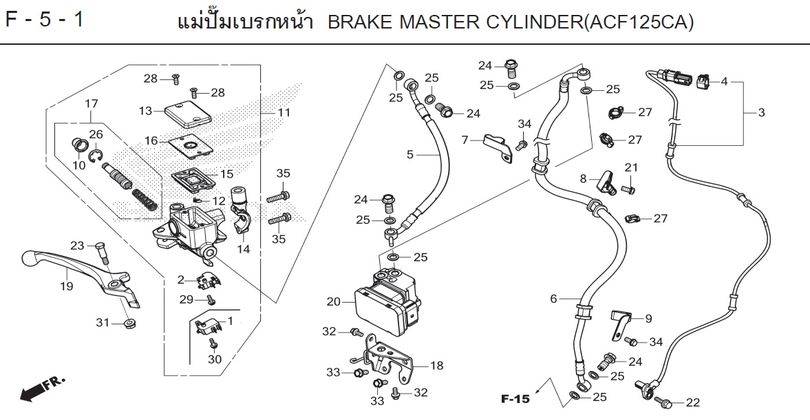

GIORNO 2026 · F-5-1 5-1 BRAKE MASTER CYLINDER(ACF125CA)
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-5-1
- 1 SWITCH SET, FRONT STOP LIGHT (OMRON) 35340-K1Y-DC1Qty per bike: 1
- 2 SWITCH SET, FRONT STOP LIGHT (ALPS) 35340-MGS-D31Qty per bike: 1
- 3 SENSOR, FRONT WHEEL SPEED 38520-K3M-T11Qty per bike: 1
- 3 FRONT WHEEL SPEED SENSOR SET 38520-K3M-T91Qty per bike: 1
- 4 CLIP, 2-WAY (DARK BLUE) 42524-T5A-003Qty per bike: 1
- 5 HOSE A, FRONT BRAKE 45126-K3M-T11Qty per bike: 1
- 6 HOSE, FRONT BRAKE B 45127-K3M-T11Qty per bike: 1
- 7 CLAMP A, FRONT BRAKE HOSE 45155-K3M-T10Qty per bike: 1
- 8 CLAMP, FRONT BRAKE HOSE B 45156-K3M-T10Qty per bike: 1
- 9 CLAMP C, FRONT BRAKE HOSE 45157-K3M-T10Qty per bike: 1
- 10 BOOT, DUST 45504-410-003Qty per bike: 1
- 11 MASTER CYLINDER SET, FRONT BRAKE 45510-K3M-T11Qty per bike: 1
- 11 MASTER CYLINDER SET, FRONT BRAKE 45510-K3M-T91Qty per bike: 1
- 12 PLATE, BAFFLE 45512-MA6-006Qty per bike: 1
- 13 CAP, BRAKE RESERVOIR 45513-K0L-D71Qty per bike: 1
- 14 CLAMP, MIRROR 45517-K81-N30Qty per bike: 1
- 15 DIAPHRAGM 45520-GE2-006Qty per bike: 1
- 16 PLATE, DIAPHRAGM 45521-K21-901Qty per bike: 1
- 17 PISTON SET, BRAKE MASTER CYLINDER 45530-471-831Qty per bike: 1
- 18 STAY, ABS PRESSURE CONTROL UNIT 50322-K3M-T10Qty per bike: 1
- 19 LEVER, FRONT BRAKE 53175-KYZ-900Qty per bike: 1
- 20 ABS MODULATOR (BRAKE PRESSURE CONTROL) UNIT 57110-K3M-T11Qty per bike: 1
- 20 BRAKE PRESSURE CONTROL UNIT, SYSTEM 57110-K3M-T12Qty per bike: 1
- 20 BRAKE PRESSURE CONTROL UNIT 57110-K3M-T91Qty per bike: 1
- 21 BOLT, FLANGE, 6x12 90013-GHB-610Qty per bike: 1
- 22 BOLT, FLANGE, 6x18 (NSHF) 90105-K77-V10Qty per bike: 1
- 23 BOLT, FRONT BRAKE LEVER PIVOT 90114-KGH-900Qty per bike: 1
- 24 BOLT, OIL (BRAKE), 10x22 (NISSIN) 90145-KPH-B30Qty per bike: 4
- 25 WASHER, SEALING 90545-300-000Qty per bike: 8
- 26 CLIP, LOCK 90651-MA5-671Qty per bike: 1
- 27 CLIP, WIRE, 12 mm 90690-MGS-D81Qty per bike: 3
- 28 SCREW, 4x12 93600-04012-1GQty per bike: 2
- 29 SCREW, WASHER, 4x12 93893-04012-17Qty per bike: 1
- 30 SCREW, WASHER, 4x12 93893-04012-18Qty per bike: 1
- 31 NUT, FLANGE, 6 mm 94050-06000Qty per bike: 1
- 32 BOLT, FLANGE, 6x12 95701-06012-00Qty per bike: 2
- 33 BOLT, FLANGE, 6x14 95701-06014-08Qty per bike: 2
- 34 BOLT, FLANGE, 6x12 96001-06012-00Qty per bike: 2
- 35 BOLT, FLANGE, 6x22 96001-06022-00Qty per bike: 2
