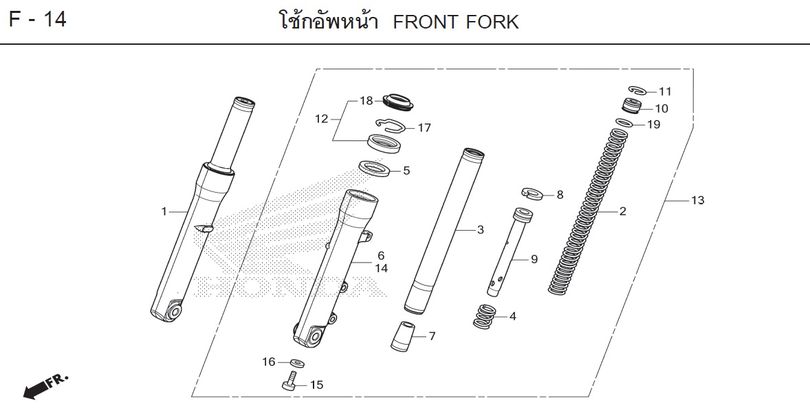

GIORNO 2026 · F-14 FRONT FORK
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-14
- 1 FRONT SHOCK ABSORBER SET, RIGHT 51400-K3M-T01Qty per bike: 1
- 2 SPRING, FRONT FORK 51401-K3M-T01Qty per bike: 2
- 3 SHAFT, FRONT FORK 51410-K2T-V01Qty per bike: 2
- 4 SPRING, FORK PISTON 51412-GC4-003Qty per bike: 2
- 5 WASHER, SEAL (SHOWA) 51412-KK4-003Qty per bike: 2
- 6 TUBE, RIGHT FRONT FORK (OUTER) 51420-K3M-T01Qty per bike: 1
- 7 BUSH, OIL PROOF 51432-K1N-V01Qty per bike: 2
- 7 BUSH, OIL PROOF 51432-K2P-VE1Qty per bike: 2
- 8 RING, FORK PISTON 51437-GS3-003Qty per bike: 2
- 9 PISTON, FORK 51440-K2T-V01Qty per bike: 2
- 10 SEAT, FRONT FORK CAP SPRING 51454-K3M-T01Qty per bike: 2
- 11 WASHER, LOCK (SHOWA) 51456-355-003Qty per bike: 2
- 12 SEAL SET, FRONT FORK TUBE (SHOWA) 51490-KRM-852Qty per bike: 2
- 13 FRONT SHOCK ABSORBER SET, LEFT 51500-K3M-T01Qty per bike: 1
- 13 FRONT SHOCK ABSORBER SET, LEFT 51500-K3M-T11Qty per bike: 1
- 14 TUBE, LEFT FRONT FORK (OUTER) 51520-K3M-T01Qty per bike: 1
- 14 TUBE, LEFT FRONT FORK (OUTER) 51520-K3M-T11Qty per bike: 1
- 15 BOLT, 8x27 (SHOWA) 90116-383-721Qty per bike: 2
- 16 WASHER, SPECIAL, 8 mm (SHOWA) 90544-283-000Qty per bike: 2
- 17 RING, OIL SEAL STOPPER (SHOWA) 90601-354-000Qty per bike: 2
- 18 SEAL, DUST (SHOWA) 91254-GAA-003Qty per bike: 2
- 19 O-RING, 21.8x2.4 91356-K1N-V01Qty per bike: 2
