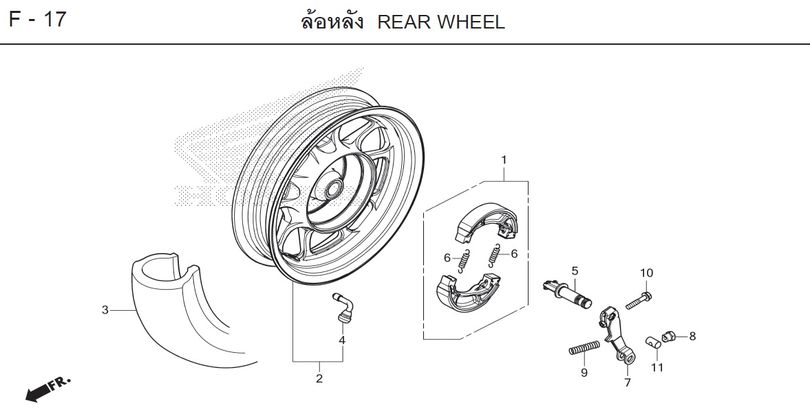

GIORNO 2026 · F-17 REAR WHEEL
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-17
- 1 SHOE/PAD SET, REAR BRAKE 06430-K44-V80Qty per bike: 1
- 1 BRAKE SHOE/PAD SET 06430-KWN-900Qty per bike: 1
- 1 BRAKE SHOE/PAD SET 06430-KZL-930Qty per bike: 1
- 2 REAR WHEEL SET (ALL COLORS) 42650-K3M-T00ZAQty per bike: 1
- 2 RIM SET, FRONT 42650-K3M-T00ZCQty per bike: 1
- 3 TIRE, REAR (110/90-12 64J) 42711-K3M-T01Qty per bike: 1
- 4 VALVE, TIRE 42753-KJ9-004Qty per bike: 1
- 5 CAM, REAR BRAKE 43141-K29-900Qty per bike: 1
- 5 CAM, REAR BRAKE 43141-KZR-600Qty per bike: 1
- 6 SPRING, BRAKE SHOE 43151-329-000Qty per bike: 2
- 7 ARM, REAR BRAKE 43410-K1N-V00Qty per bike: 1
- 8 NUT, BRAKE ARM ADJUSTING 43459-GN5-760Qty per bike: 1
- 8 NUT, BRAKE ADJUSTING B 95015-42000Qty per bike: 1
- 9 SPRING, REAR BRAKE ARM 43472-K97-T00Qty per bike: 1
- 10 BOLT, FLANGE, 6x32 90112-KVB-900Qty per bike: 1
- 11 PIN, BRAKE ROD B 95015-32001Qty per bike: 1
